Climax Metals C123M-85X125

B01I37PAVK

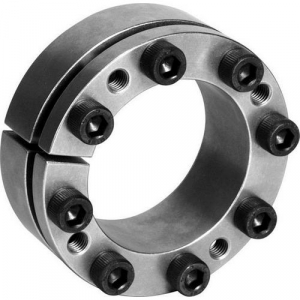

Climax Metals C123M-85X125 Series 123 Locking Assembly, Steel, 3.35" ID, 1.97" Width, 85 mm Shaft Diameter

Climax Metals C123M-85X125 Series 123 Locking Assembly, Steel, 3.35" ID, 1.97" Width, 85 mm Shaft Diameterzoom

Attributes

Key Value
Agency ComplianceRoHS
Bolt SizeM10 x 30
Country of Origin (subj.Italy
D4.921 in
d3.346 in
FinishOil Dipped
Flange TypeNot Applicable
For Bore Diameter85 mm
For Shaft Dia. - Bushin.85 mm
Hub Contact Pressure28,693.097 psi
Hub Contact Pressure (P.28,693.097
Hub Machining Tolerance+.003 in
ItemKeyless Bushing
Item Weight4.50 lb
Keyless Bushing SeriesC123M
Keyless Bushing TypeMulti-Screw Locking Ass.
L0.945 in
L11.201 in
L21.594 in
L31.988 in
Locking Bolt Quantity9
Locking Screws Quantity9
Locking Screws SizeM10 x 30
MaterialSteel
Material & FinishOil Dipped Steel
Material - BushingsSteel
Maximum Transmitted Tor.397 ft-lb
Number of Tightening Bo.Multiple Pieces
Outside Dia.125 mm
Outside Dia. (In.)4.921
Outside Dia. (mm)125
Outside Dia. Tolerance+0/-.002 in
Outside Diameter125 mm
Outside Diameter Tolera.+0/-.002 in
Overall Length50.5 mm
Overall Length (In.)1.988
Overall Length (mm)50.5
Overall Width50.5 mm
Package Quantity1
Screw Thread SizeM10 x 30
Shaft Dia. (In.)3.346
Shaft Dia. (mm)85
Shaft Dia. Tolerance+0/-.002 in
Shaft Machining Toleran.-.002 in
Shaft Size85 mm
StandardsRoHS
System of MeasurementMetric
Transmissible Thrust (L.34,203.558
Transmissible Torque397 ft-lb
Transmissible Torque (F.397
TypeC123M Series
Withstand Temp. (Deg. F)Up to 400 Degrees F
