Climax Metal

B07DK7X1LY

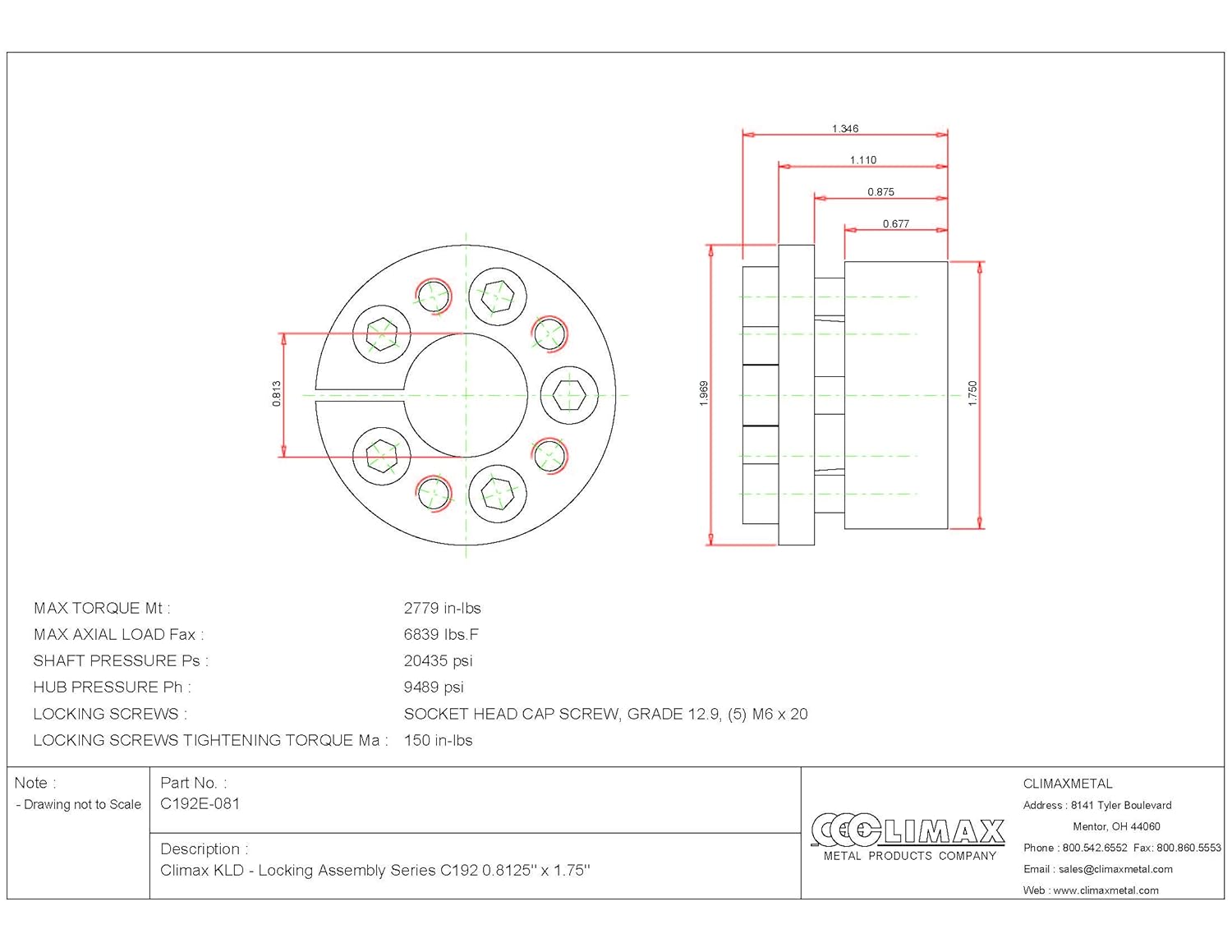

Climax Metal Products C192E-081 - Keyless Locking Assemblies - .8125 in Bore, 1.7500 in OD, 1.3460 in Length, Steel

Climax Metal Products C192E-081 - Keyless Locking Assemblies - .8125 in Bore, 1.7500 in OD, 1.3460 in Length, Steelzoom

Attributes

Key Value
Bolt SizeM6 x 20
D1.750 in
d0.813 in
D11.969 in
Finishzinc plated
For Bore Diameter13/16 in
For Shaft Dia. - Bushin.13/16 in
Hub Contact Pressure (P.9,489
Hub Machining Tolerance?.003 in
ItemKeyless Bushing
Keyless Bushing SeriesC192
Keyless Bushing TypeMulti-Screw Locking Ass.
L0.677 in
L10.875 in
L21.110 in
L31.346 in
Locking Bolt Quantity5
Locking Screws Quantity5
Locking Screws SizeM6 x 20
Material - BushingsSteel
Outside Dia.1.75 in
Outside Dia. (In.)1.75
Outside Dia. Tolerance+/-0.003
Outside Diameter1 3/4 in
Outside Diameter Tolera.+/-0.003
Overall Length1.346 in
Overall Length (In.)1.346
Overall Width1.346 in
Screw Thread SizeM6 x 20
Shaft Dia. (In.)0.813
Shaft Dia. Tolerance+/-0.003
Shaft Machining Toleran.?.003 in
Shaft Size13/16 in
Transmissible Thrust (L.6,839
Transmissible Torque2,779 ft-lb
Transmissible Torque (F.2779
TypeFlanged
Weight0.66 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG712983254.9913Climax Metal Products0.754.99 @ 3
thumbzoomsustainablesupply.comC164790574.6813Climax Metal Products0.774.68 @ 3
thumbzoomAmazonB01I37VB7W75.4913Climax Metals75.49 @ 3
thumbzoomMRO Supply205740778.013Climax Metal78.0 @ 3
thumbzoomapexindustrialautomation.comC192E-08179.7913Climax Metal Products79.79 @ 3
thumbzoomusmegastore.comC192E-08185.0413Climax Metal0.6685.04 @ 3
thumbzoomMegadepotC192E-08185.0413Climax Metal0.6685.04 @ 3
thumbzoomheavydutydepot.comC192E-08185.4323Climax Metal85.43 @ 3
thumbzoombscsource.comC192E08197.2913Climax Metal Products97.29 @ 3
thumbzoomRaptor SuppliesAC7FJQ124.863862513CLIMAX METAL PRODUCTS124.8638625 @ 3
thumbzoomNational Supply Network77957678145.8113Climax Metal Products145.81 @ 3
motionindustries.com06707749187.713Climax Metal Products187.7 @ 3
thumbzoomMisumi USAC192E-081190.891317Climax Metal Products190.89 @ 3
