Climax Metal

B07DK829BP

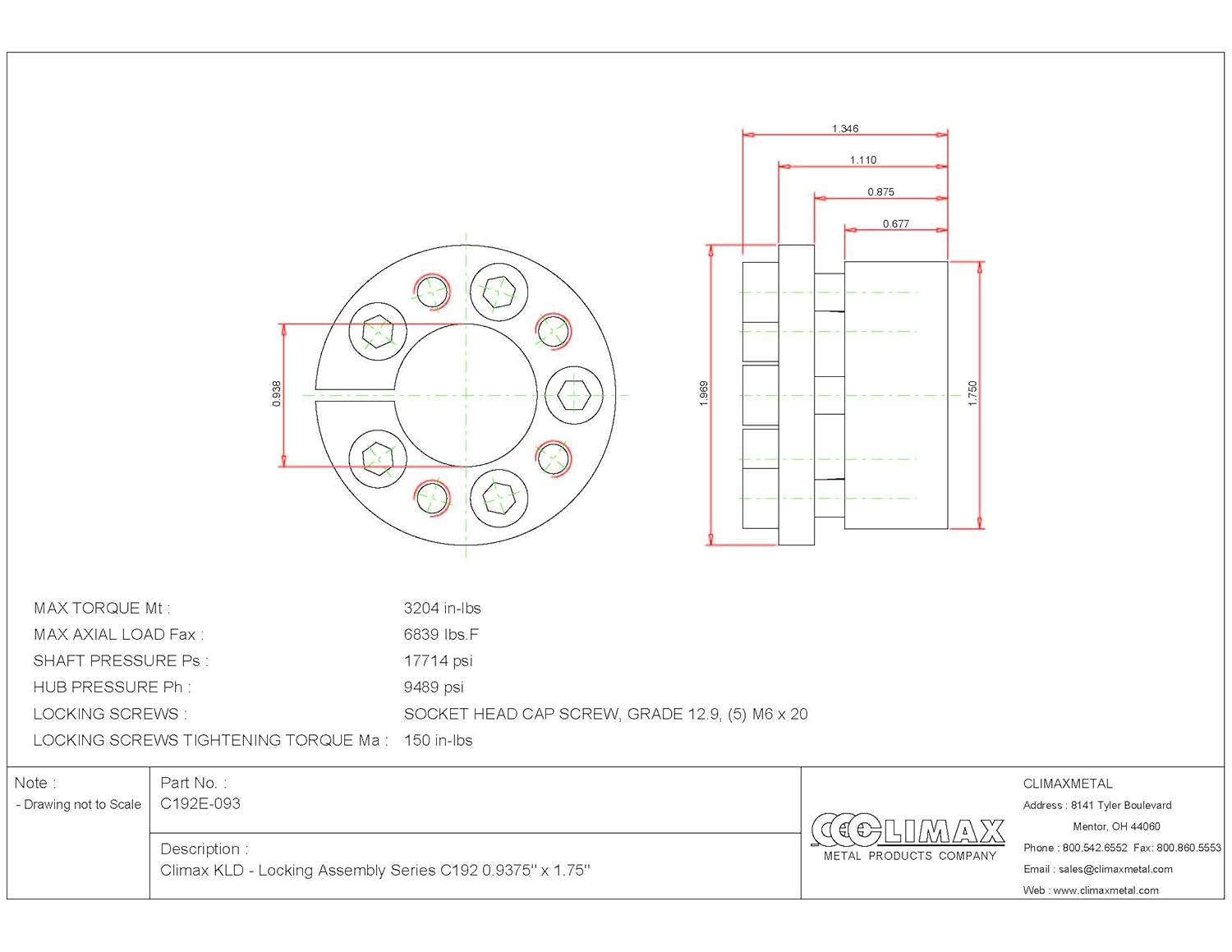

Climax Metal Products C192E-093 - Keyless Locking Assemblies - .9375 in Bore, 1.7500 in OD, 1.3460 in Length, Steel

Climax Metal Products C192E-093 - Keyless Locking Assemblies - .9375 in Bore, 1.7500 in OD, 1.3460 in Length, Steelzoom

Attributes

Key Value
Bolt SizeM6 x 20
D1.750 in
d0.938 in
D11.969 in
Finishzinc plated
For Bore Diameter15/16 in
For Shaft Dia. - Bushin.15/16 in
Hub Contact Pressure (P.9,489
Hub Machining Tolerance?.003 in
ItemKeyless Bushing
Keyless Bushing SeriesC192
Keyless Bushing TypeMulti-Screw Locking Ass.
L0.677 in
L10.875 in
L21.110 in
L31.346 in
Locking Bolt Quantity5
Locking Screws Quantity5
Locking Screws SizeM6 x 20
MaterialSteel
Material - BushingsSteel
Outside Dia.1.75 in
Outside Dia. (In.)1.75
Outside Dia. Tolerance+/-0.003
Outside Diameter1 3/4 in
Outside Diameter Tolera.+/-0.003
Overall Length1.346 in
Overall Length (In.)1.346
Overall Width1.346 in
Screw Thread SizeM6 x 20
Shaft Dia. (In.)0.938
Shaft Dia. Tolerance+/-0.003
Shaft Machining Toleran.?.003 in
Shaft Size15/16 in
Transmissible Torque3,204 ft-lb
Transmissible Torque (F.3204
TypeFlanged
Weight0.44 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG682403657.9911Climax Metal Products0.557.99 @ 1
thumbzoomAmazonSCB01I37VOSS65.591In StockClimax Metals65.59 @ 1
thumbzoomsustainablesupply.comC164790774.051In StockClimax Metal Products0.574.05 @ 1
thumbzoomMRO Supply205740978.01In StockClimax Metal78.0 @ 1
thumbzoomapexindustrialautomation.comC192E-09379.791In StockClimax Metal Products79.79 @ 1
thumbzoomMegadepotC192E-09385.041In StockClimax Metal0.4485.04 @ 1
thumbzoomusmegastore.comC192E-09385.431In StockClimax Metal0.4485.43 @ 1
thumbzoomheavydutydepot.comC192E-09385.432In StockClimax Metal85.43 @ 2
Applied Industrial10381454888.041In StockClimax Metal88.04 @ 1
thumbzoombscsource.comC192E09393.391In StockClimax Metal Products93.39 @ 1
thumbzoomRaptor SuppliesAC7FJT124.86386251In StockCLIMAX METAL PRODUCTS124.8638625 @ 1
thumbzoomNational Supply Network77957694165.151In StockClimax Metal Products165.15 @ 1
motionindustries.com06707750187.71In StockClimax Metal Products187.7 @ 1
thumbzoomMisumi USAC192E-093190.891In Stock17Climax Metal Products190.89 @ 1
