Climax Metal
Climax Metalzoom

Climax Metal

mpn:
C192E-168
brand:
Climax Metal Products
manufacturer:
Climax Metal Products
MPN:
C192E-168
Description:
Keyless Bushing, Flange Type Flanged, For Bore Diameter 1 11/16 in, Keyless Bushing Type Multi-Screw Locking Assembly, Material Steel, Outside Diameter 2 5/8 in, Overall Width 2.157 in, System of Measurement Inch, Finish Zinc Plated, Hub Contact Pressure 5,249 psi, Maximum Transmitted Torque 9,231 ft-lb, Outside Diameter Tolerance +/-0.003
Weight:
0.1
Weight:
0.1 LB
Preferred Price:
196.45
Price:
196.45
Min Simple Price:
110.99
Absolute Min Price:
157.6
Min Price:
157.6
Dimensions:
[4.0, 4.0, 3.0]
qty:
21
simpleSku:
TM4NjM:::C192E-168
sku:
TM4NjM::KC:C192E-168@y0
condition:
11
seller:
Zoro
amzMan:
climax metal products
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Bolt Size, Locking Screws Size, Screw Thread SizeM6 x 20
d, L11.688 in
D, Outside Dia.2.625 in
D12.874 in
For Bore Diameter, For Shaft Dia. - Bushings1 11/16 in
Hub Contact Pressure (PSI)5,249
Hub Machining Tolerance, Shaft Machining Tolerance?.003 in
ItemKeyless Bushing
Keyless Bushing SeriesC192
Keyless Bushing TypeMulti-Screw Locking Assembly
L1.409 in
L21.921 in
L3, Overall Length, Overall Width2.157 in
Locking Screws Quantity8
Material - BushingsSteel
Outside Dia. (In.)2.625
Outside Dia. Tolerance, Outside Diameter Tolerance, Shaft Dia. Tolerance+/-0.003
Outside Diameter2 5/8 in
Overall Length (In.)2.157
Shaft Dia. (In.)1.688
Shaft Size1-11/16 in
Transmissible Thrust (Lbs.)10,943
Transmissible Torque9,231 ft-lb
Transmissible Torque (Ft.-Lbs.)9231
TypeFlanged, C192 Series
Weight1.54 lb
Withstand Temp. (Deg. F)Up to 400 Degrees F

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomZoroG6428615110.99177.58412Climax Metal Products1.6110.99 @ Qty: 2+
thumbzoomAmazonB01I37WFEU128.76206.01612Climax Metals128.76 @ Qty: 2+
thumbzoomsustainablesupply.comC1647919133.29213.26412Climax Metal Products1.6133.29 @ Qty: 2+
thumbzoomMRO Supply2057421140.0224.012Climax Metal140.0 @ Qty: 2+
thumbzoomusmegastore.comC192E-168168.6269.7612Climax Metal1.54168.6 @ Qty: 2+
thumbzoomMegadepotC192E-168168.6269.7612Climax Metal1.54168.6 @ Qty: 2+
thumbzoomheavydutydepot.comC192E-168169.4271.0412Climax Metal169.4 @ Qty: 2+
thumbzoombscsource.comC192E168193.39309.42412Climax Metal Products193.39 @ Qty: 2+
thumbzoomRaptor SuppliesAC7FKF248.3980785397.436925612CLIMAX METAL PRODUCTS248.3980785 @ Qty: 2+
thumbzoomNational Supply Network77957371288.455461.52812Climax Metal Products288.455 @ Qty: 2+
motionindustries.com06707732373.42597.47212Climax Metal Products373.42 @ Qty: 2+
thumbzoomMisumi USAC192E-168379.7607.521217Climax Metal Products379.7 @ Qty: 2+
B07DK1X1KC
Climax Metal

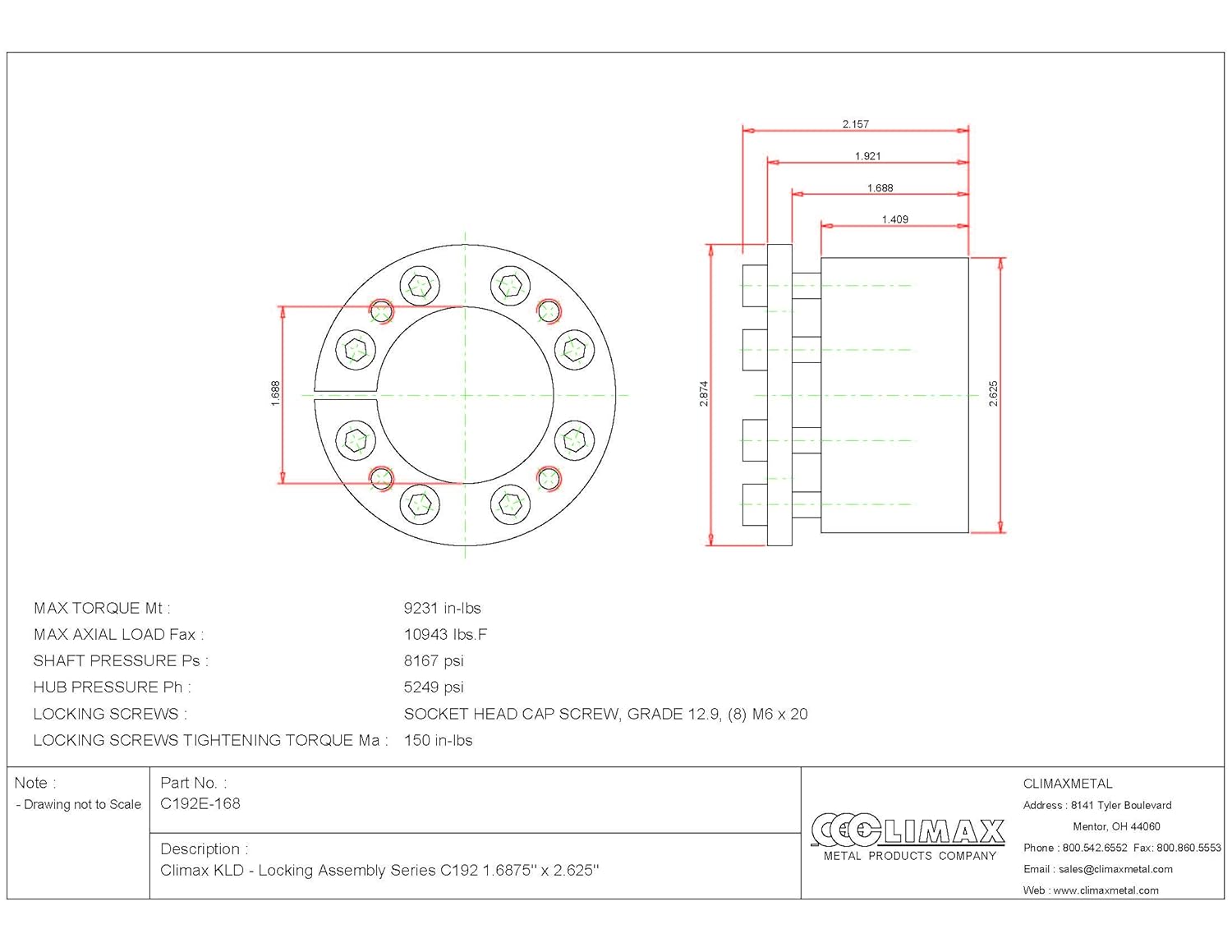

Climax Metal Products C192E-168 - Keyless Locking Assemblies - 1.6875 in Bore, 2.6250 in OD, 2.1570 in Length, Steel

Climax Metal Products C192E-168 - Keyless Locking Assemblies - 1.6875 in Bore, 2.6250 in OD, 2.1570 in Length, Steelzoom
