mpn:
C192E-175
brand:
Climax Metal Products
manufacturer:
Climax Metal Products
MPN:
C192E-175
Description:

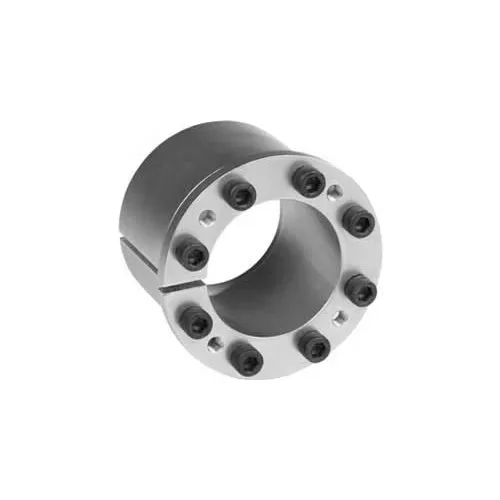

Keyless Bushing, Flange Type Flanged, For Bore Diameter 1 3/4 in, Keyless Bushing Type Multi-Screw Locking Assembly, Material Steel, Outside Diameter 2 5/8 in, Overall Width 2.157 in, System of Measurement Inch, Finish Zinc Plated, Hub Contact Pressure 5,249 psi, Maximum Transmitted Torque 9,577 ft-lb, Outside Diameter Tolerance +/-0.003
Weight:
0.1
Weight:
0.1 LB
Preferred Price:
247.8
Price:
247.8
Min Simple Price:
140.0
Absolute Min Price:
198.8
Min Price:
198.8
Dimensions:
[4.0, 4.0, 3.0]
qty:
21
simpleSku:
TM4NjM:::C192E-175
sku:
TM4NjM::DC:C192E-175@y0
condition:
11
seller:
MRO Supply
amzMan:
climax metal products
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Bolt Size, Locking Screws Size, Screw Thread SizeM6 x 20
BrandClimax Metal Products
ColorSilver
d1.750 in
D, Outside Dia.2.625 in
D12.874 in
Finishzinc plated
For Bore Diameter, For Shaft Dia. - Bushings1 3/4 in
Hub Contact Pressure (PSI)5,249
Hub Machining Tolerance, Shaft Machining Tolerance?.003 in
International ShippingNo
ItemKeyless Bushing
Keyless Bushing SeriesC192
Keyless Bushing TypeMulti-Screw Locking Assembly
L1.409 in
L11.688 in
L21.921 in
L3, Overall Length, Overall Width2.157 in
Locking Bolt Quantity, Locking Screws Quantity8
Material - BushingsSteel
MpnC192E-175
Outside Dia. (In.)2.625
Outside Dia. Tolerance, Outside Diameter Tolerance, Shaft Dia. Tolerance+/-0.003
Outside Diameter2 5/8 in
Overall Length (In.)2.157
Shaft Dia. (In.)1.75
Shaft Size1-3/4 in
SKUZO-G7176662
SubCategoryPower Transmission
Transmissible Torque9,577 ft-lb
TypeFlanged, C192 Series
UPC044861060087
Weight1.54 lb
Withstand Temp. (Deg. F)Up to 400 Degrees F
