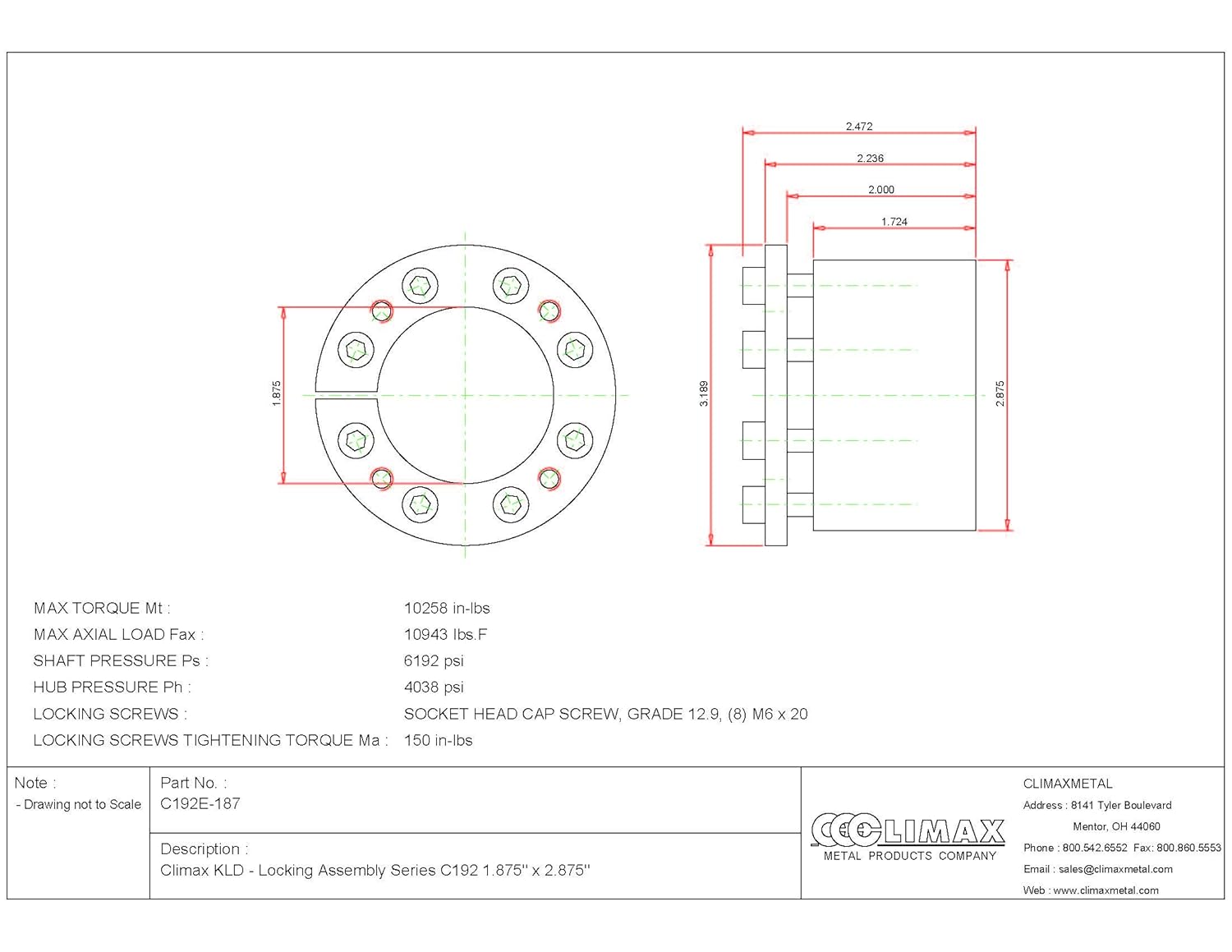

Climax Metals C192E-187 Series 192 Locking Assembly, Steel, Zinc Plated, 1.88" ID, 2.5" Width, 1-7/8" Shaft Diameter

Climax Metals C192E-187 Series 192 Locking Assembly, Steel, Zinc Plated, 1.88" ID, 2.5" Width, 1-7/8" Shaft Diameterzoom

Attributes

Key Value
Bolt SizeM6 x 20
D2.875 in
d1.875 in
D13.189 in
For Bore Diameter1 7/8 in
For Shaft Dia. - Bushin.1 7/8 in
Hub Contact Pressure (P.4,038
Hub Machining Tolerance?.003 in
ItemKeyless Bushing
Keyless Bushing SeriesC192
Keyless Bushing TypeMulti-Screw Locking Ass.
L1.724 in
L12.000 in
L22.236 in
L32.472 in
Locking Bolt Quantity8
Locking Screws Quantity8
Locking Screws SizeM6 x 20
Material - BushingsSteel
Outside Dia.2.875 in
Outside Dia. (In.)2.875
Outside Dia. Tolerance+/-0.003
Outside Diameter2 7/8 in
Outside Diameter Tolera.+/-0.003
Overall Length2.472 in
Overall Length (In.)2.472
Overall Width2.472 in
Screw Thread SizeM6 x 20
Shaft Dia. (In.)1.875
Shaft Dia. Tolerance+/-0.003
Shaft Machining Toleran.?.003 in
Shaft Size1-7/8 in
Transmissible Thrust (L.10,943
Transmissible Torque10,258 ft-lb
TypeFlanged, C192 Series
Weight2.20 lb
Withstand Temp. (Deg. F)Up to 400 Degrees F

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7162434130.9912Climax Metal Products2.2130.99 @ 2
thumbzoomsustainablesupply.comC1647922160.012Climax Metal Products2.2160.0 @ 2
thumbzoomMRO Supply2057424160.012Climax Metal160.0 @ 2
thumbzoomAmazonB01I37WEHI169.4812Climax Metals169.48 @ 2
thumbzoomapexindustrialautomation.comC192E-187179.1212Climax Metal Products179.12 @ 2
thumbzoomMegadepotC192E-187187.412Climax Metal2.2187.4 @ 2
thumbzoomusmegastore.comC192E-187188.212Climax Metal2.2188.2 @ 2
thumbzoomheavydutydepot.comC192E-187188.212Climax Metal188.2 @ 2
thumbzoombscsource.comC192E187218.3912Climax Metal Products218.39 @ 2
thumbzoomRaptor SuppliesAC7FKJ280.309594512CLIMAX METAL PRODUCTS280.3095945 @ 2
thumbzoomNational Supply Network77957405324.92512Climax Metal Products324.925 @ 2
motionindustries.com06707753421.3712Climax Metal Products421.37 @ 2
thumbzoomMisumi USAC192E-187428.51217Climax Metal Products428.5 @ 2
