prev
Climax Metal
Climax Metalzoom

Climax Metal

mpn:
C405M-80X120
brand:
Climax Metal Products
manufacturer:
Climax Metal Products
MPN:
C405M-80X120
Description:

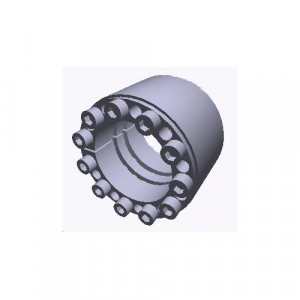

Keyless Bushing, Flange Type Not Applicable, For Bore Diameter 80 mm, Keyless Bushing Type Multi-Screw Locking Assembly, Material Steel, Outside Diameter 120 mm, Overall Width 90 mm, System of Measurement Metric, Finish Oil Dipped, Hub Contact Pressure 31,938.15 psi, Maximum Transmitted Torque 914 ft-lb, Outside Diameter Tolerance +0/-.002 in
Weight:
6.8
Weight:
0.4875 LB
Preferred Price:
454.87
Price:
454.87
Min Simple Price:
256.99
Absolute Min Price:
364.92
Min Price:
364.92
Dimensions:
[5.0, 5.0, 4.0]
qty:
21
simpleSku:
MjA5OQ:::C405M-80X120
sku:
MjA5OQ::86:C405M-80X120@y0
condition:
11
seller:
Zoro
amzMan:
climax metal products
HazMat:
True
DropShip:
True

Attributes

Key Value
Bolt SizeM10 x 60
D4.724 in
d3.150 in
For Bore Diameter80 mm
For Shaft Dia. - Bushings80mm, 80 mm
Hub Machining Tolerance+.002 in
ItemKeyless Locking Assembly, Keyless Bushing
Item Weight7.80 lb
Keyless Bushing SeriesC405
Keyless Bushing TypeMulti-Screw Locking Assembly
L2.756 in
L13.150 in
L23.543 in
Locking Screws Quantity11
Locking Screws SizeM10 x 60
Material - BushingsSteel
Number of Tightening BoltsMultiple Pieces
Outside Dia.120 mm, 120mm
Outside Dia. (In.)4.724
Outside Dia. (mm)120
Outside Dia. Tolerance+0/-.002 in
Outside Diameter120 mm
Outside Diameter Tolerance+0/-.002 in
Overall Length90 mm, 90mm
Overall Length (In.)3.543
Overall Length (mm)90
Overall Width90 mm
Screw Thread SizeM10 x 60
Shaft Dia. (In.)3.15
Shaft Dia. (mm)80
Shaft Dia. Tolerance+0/-.002 in
Shaft Machining Tolerance-.002 in
Shaft Size80 mm
Transmissible Thrust (Lbs.)83,608.696
Transmissible Torque914 ft-lb, 914 ft.-lb.

All Prices

Img Seller Supplier SKU Requested Price Calc MOQ Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0209590256.99256.991In StockClimax Metal Products7.8256.99 @ Qty: 1+
thumbzoomMRO Supply746668260.0260.01In StockClimax Metal260.0 @ Qty: 1+
AmazonTPB07N32CGHD266.84266.841In Stock4Climax Metal266.84 @ Qty: 1+
thumbzoomMegadepotC405M-80X120327.3327.31In StockClimax Metal7.8327.3 @ Qty: 1+
thumbzoomusmegastore.comC405M-80X120328.3328.31In StockClimax Metal7.8328.3 @ Qty: 1+
thumbzoomheavydutydepot.comC405M-80X120328.3328.31In StockClimax Metal328.3 @ Qty: 1+
thumbzoomMisumi USAC405M-80X120346.45346.451In Stock17Climax Metal Products346.45 @ Qty: 1+
thumbzoomapexindustrialautomation.comC405M-80X120347.28347.281In StockClimax Metal Products347.28 @ Qty: 1+
thumbzoomRaptor SuppliesAH7RHX515.120697515.1206971In StockCLIMAX METAL PRODUCTS515.120697 @ Qty: 1+
Grainger38AU74533.0533.01In Stock10CLIMAX METAL PRODUCTS7.8533.0 @ Qty: 1+
thumbzoombscsource.comC405M80X120534.19534.191In StockClimax Metal Products534.19 @ Qty: 1+
motionindustries.com02771877774.35774.351In StockClimax Metal Products774.35 @ Qty: 1+
thumbzoomNational Supply Network51321537815.14815.141In StockClimax Metal Products815.14 @ Qty: 1+
B07DK4DD86
Climax Metal

Climax Metal Products C405M-80x120 - Keyless Locking Rigid Coupling - 80 mm Bore, 120 mm OD, 3.5430 in Length, Steel

Climax Metal Products C405M-80x120 - Keyless Locking Rigid Coupling - 80 mm Bore, 120 mm OD, 3.5430 in Length, Steelzoom
