Climax Metal C801M-055

B07N31XFXC

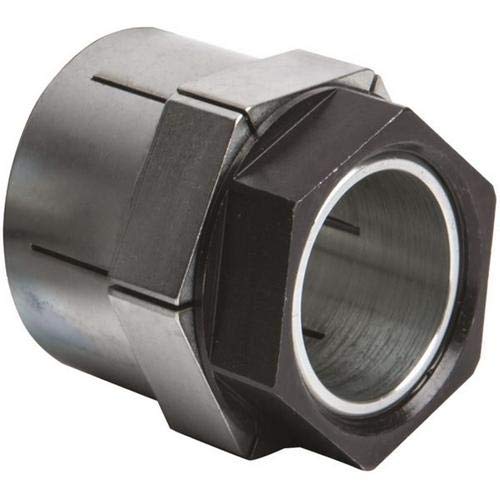

C801M-055-55 MM ID x 80 MM OD Single NUT Series C801

C801M-055-55 MM ID x 80 MM OD Single NUT Series C801zoom

Attributes

Key Value
Bolt Size70mm
Country of Origin (subj.Italy
Finishzinc plated
Flange TypeNot Applicable
For Bore Diameter55 mm
For Shaft Dia. - Bushin.55 mm
Hub Contact Pressure7,542 psi
Hub Contact Pressure (P.7,542
ItemKeyless Bushing
Keyless Bushing SeriesC801M
Keyless Bushing TypeSingle Nut Locking Asse.
Locking Bolt Quantity1
MaterialSteel
Material & FinishZinc Plated Steel
Material - BushingsSteel
Maximum Transmitted Tor.1,175 ft-lb
Outside Dia.80 mm
Outside Dia. (mm)80
Outside Dia. Tolerance+0.003 in
Outside Diameter80 mm
Outside Diameter Tolera.+0.003 in
Overall Length95.3 mm
Overall Width95.3 mm
Package Quantity1
Screw Thread Size70mm
Shaft Dia. (mm)55
Shaft Dia. Tolerance-0.003 in
System of MeasurementMetric
Transmissible Thrust (L.13,050
Transmissible Torque1,175 ft-lb
Withstand Temp. (Deg. F)Up to 400 Degrees F
