Description:

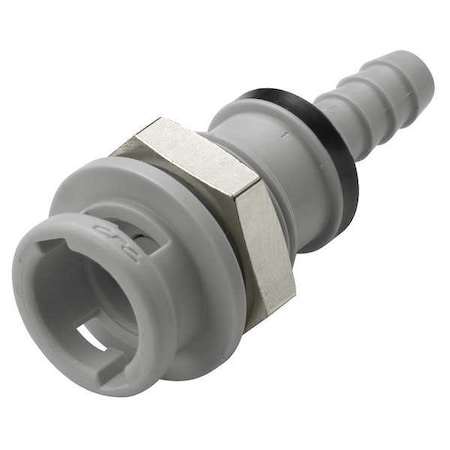

Coupler, Application Air, Non-Potable Water, Fitting Side A Connection Type Barbed, Fitting Side B Connection Type Coupler, Fitting Side A Tube Inner Diameter 1/8 in, Flow Control Type Shut-off, Fitting Material Polypropylene, Overall Length 1 25/32 in, Specific Fitting Shape Panel Mount Coupler, Standards FDA Approved, RoHS, USDA, Color Gray, Maximum Operating Pressure 45 psi, Maximum Operating Temperature 160 Degrees F, Minimum Operating Temperature 32 Degrees F
Attributes
| Key ^ | Value |
|---|---|
| Application | Air, Non-Potable Water |
| Basic Pipe Fitting Material | Plastic |
| Color | Gray |
| Fitting Connection Type, Pipe Fitting Connection Type | Barb x Coupler |
| Fitting Material, Tube Fitting Material | Polypropylene |
| Fitting Shape | Coupler Body |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter, For Tube Inside Diameter | 1/8 in |
| Fitting Side B Connection Type, Item, Specific Pipe Fitting Shape | Coupler |
| Flow Control Type | Shut-off |
| Maximum Operating Pressure | 45 psi |
| Maximum Operating Temperature | 160 Degrees F |
| Minimum Operating Temperature | 32 Degrees F |
| Overall Length | 1 25/32 in |
| Resistance Properties | Chemical-Resistant |
| Series | NS212 |
| Specific Fitting Shape | Panel Mount Coupler |
| Standards | FDA Approved, RoHS, USDA |
| Temp. Range | 32 Degrees to 160 Degrees F |
