- mpnCA0900X075KW
- brandname: CONGRESS
- manufacturername: CONGRESS

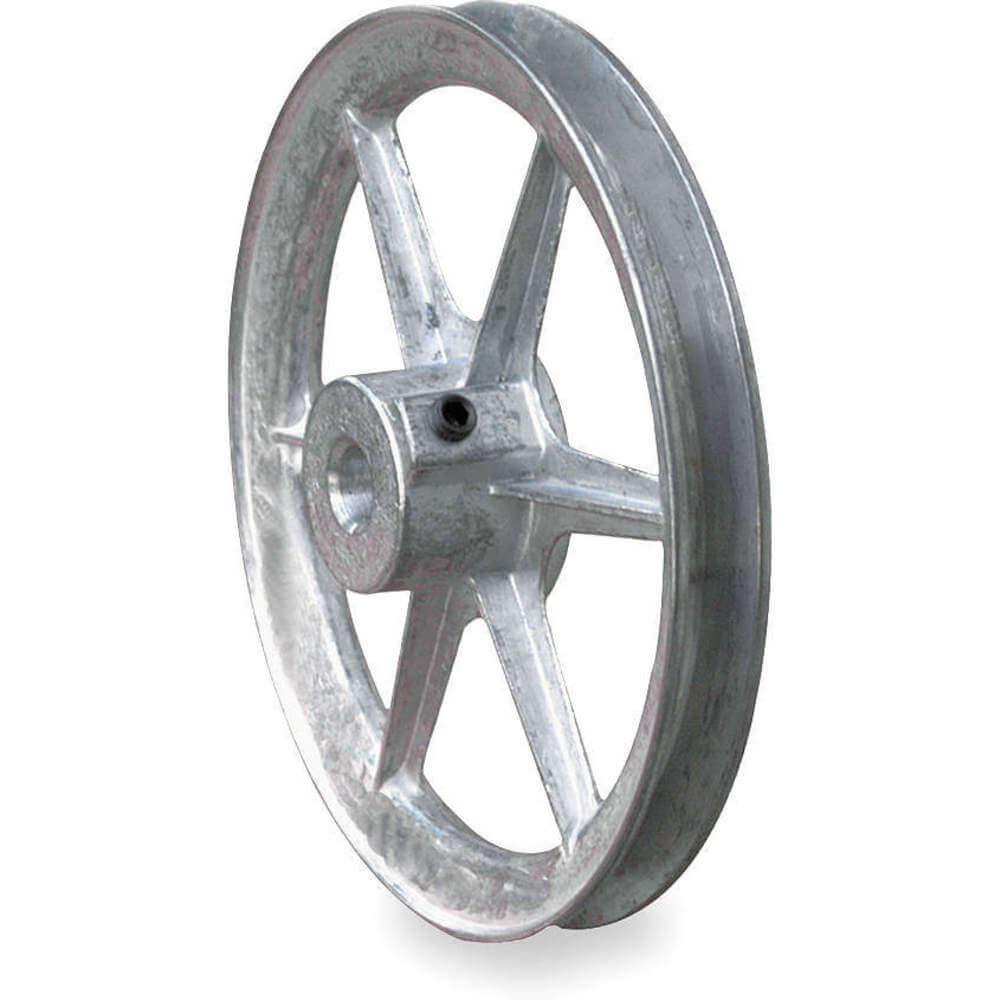

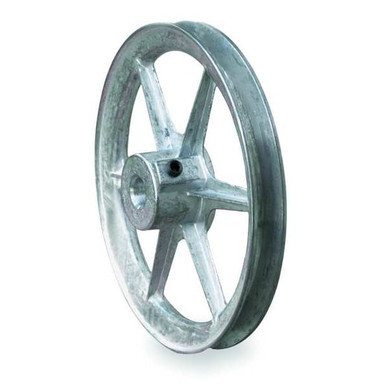

V-Belt Pulley, 1 Groove, 9.00" O.D.
- Brand: Congress
- PartNumber: CA0900X075KW
- Model: CA0900X075KW
- PackageQuantity: 1
- Manufacturer: CONGRESS
- Label: CONGRESS
Attributes
| Key | Value |
|---|
| 3L Belt Pitch Dia. | 8.55 in, 8.55" |
| 3L Pitch Diameter | 8.55 in |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L or A Belt Pitch Dia. | 8.85", 8.85 in |
| 4L Pitch Diameter | 8.75 in |
| 4L, A, or AX Belt Pitch. | 8.85" |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 8.75 in |
| AX Pitch Diameter | Not Applicable |
| B Pitch Diameter | Not Applicable |
| Bore Diameter | 3/4 in |
| Bore Type | Fixed |
| Brand | Congress |
| Bushing Required | None |
| BX Pitch Diameter | Not Applicable |
| C Pitch Diameter | Not Applicable |
| Construction | Spoked |
| Current Stock | 97 |
| CX Pitch Diameter | Not Applicable |
| Face Width | 0.69 in |
| Fits Shaft Dia. | 3/4", 3/4 in |
| For Belt Family | Classical, Fractional H. |
| For Belt Trade Size | 4L, A |
| For V-Belt Section | 3L, 4L, A |
| Hub Projection | 0.594 in |
| Hub Type | One Side |
| Industry Number | CA0900X075KW |
| International Shipping | No |
| Item | V-Belt Pulley, Standard. |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187" x 0.093", 0.187 . |
| Keyway Width | 3/16 in |
| Lead Time | Expected to ship in 1-2. |
| Length through Bore | 1 3/32 in |
| Material Fabrication | Cast |
| Maximum Bore Diameter | 3/4 in |
| Mpn | CA0900X075KW |
| Number of Grooves | 1 |
| Number of Steps | 1 |
| Outside Diameter | 9 in |
| Pitch Diameter | 8 3/4 in |
| Pitch Diameter for V-Be. | 3L: 8.55 in / 4L: 8.75 . |
| Pulley Bore Dia. | 3/4", 3/4 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Spoked |
| Pulley Material | Die Cast Zamak 3 |
| Pulley Outside Dia. | 9.00", 9.0 in |
| Set Screw Included | Yes |
| Set Screw Size | 5/16 in |
| SKU | ZO-G4446375 |
| SubCategory | Power Transmission |
| Weight | 1.3 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4446375 | 15.15 | 1 | 148 | | Congress | 1.61 | 15.15 @ 1 |
 | simsupply.com | ZO-G4446375 | 23.9 | 1 | 97 | | Congress | | 23.9 @ 1 |
| Grainger | 3X932 | 49.9 | 1 | 95 | 0 | CONGRESS | | 49.9 @ 1 |
 | Raptor Supplies | AD2ZNL | 78.0022035 | 1 | In Stock | | CONGRESS | | 78.0022035 @ 1 |
| grainger.ca | WWG3X932 | 83.06931561 | 1 | In Stock | | CONGRESS | 1.45 | 83.06931561 @ 1 |
