Control Techniques C300-01200042A

B07SRVMJR4

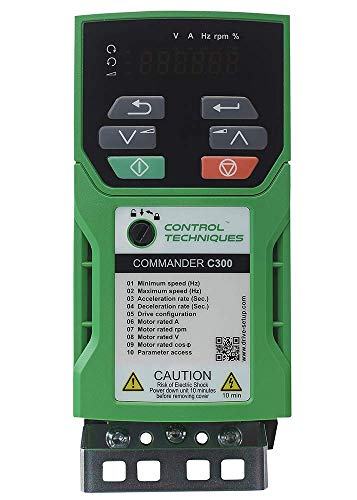

Control Techniques ? Commander C300 ? Open Loop Variable Frequency Drive with Integrated PLC and STO ? Rating: 1 HP, 4.2 Amps ? Input: 1ph, 230 VAC ? 50/60 Hz ? Output: 3ph, 230 VAC

Control Techniques ? Commander C300 ? Open Loop Variable Frequency Drive with Integrated PLC and STO ? Rating: 1 HP, 4.2 Amps ? Input: 1ph, 230 VAC ? 50/60 Hz ? Output: 3ph, 230 VACzoom

Attributes

Key Value
AC Line RegenerativeNo
Amps4.200
Amps (Constant Torque R.4.2 A
Amps (Max Load)4.2
Amps (Variable Torque R.4.2 A
Braking TypeDC Injection, Dynamic B.
Closed LoopNo
Drive SeriesCommander C300
Dynamic Braking TransIncluded
Enclosure1, IP21
Family SeriesControl Techniques Driv.
Frame Size1
Gross Weight1.7 lbs
Height6.300 in
Horsepower1
HP (Constant Torque Rat.1 hp
HP (Max)1
HP (Variable Torque Rat.1 hp
Input Phase1
Input Range Voltage (AC)200-240 VAC
Input Voltage180-264V
IP RatingIP20
Item NumberC300-01200042A10101AB100
ManufacturerControl Techniques
Manufacturer Part NumberC300-01200042A10101AB100
Max Frequency550 Hz
Motor Control-Max LevelOpen Loop Rotor Flux Co.
MountingPanel
Net Weight1.65 lbs
Operator ControlsBuilt In
PackageC300FR1IP20
Phase1
Product SeriesCommander C300
Volts AC230
Width3 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker IndustrialC300-01200042A10101AB100346.41In StockControl Techniques346.4 @ 1
thumbzoomelectricalparts.comC300-01200042A10101AB100349.171214Control Techniques349.1712 @ 1
thumbzoomGalcoC300-01200042A10101AB100-CONT373.051In StockControl Techniques1.7373.05 @ 1
thumbzoommotorsandcontrol.comC300-01200042A10101AB100373.051In StockControl Techniques373.05 @ 1
thumbzoomPlatt.com2028429376.7113Control Techniques376.71 @ 1
