Cooper Bussmann BK/S506-8-R

mpnBK/S506-8-R
brandname: Cooper Bussmann
manufacturername: Cooper Bussmann

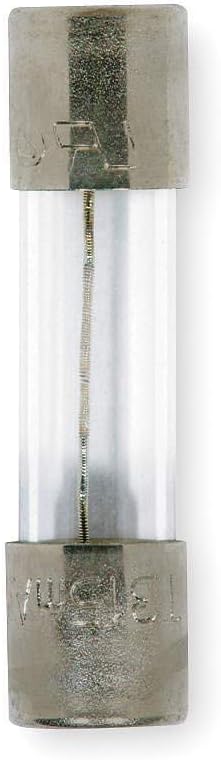

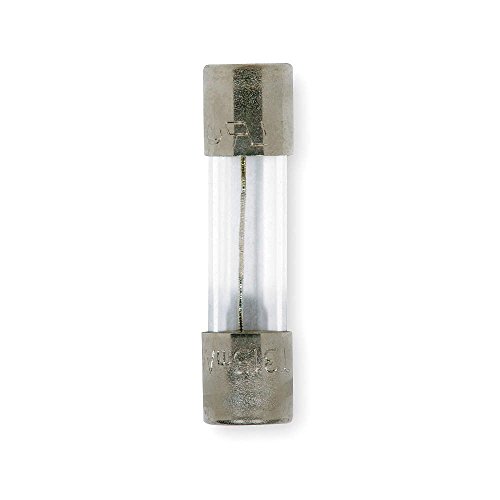

COOPER BUSSMANN BK/S506-8-R ELECTRONIC CARTRIDGE FUSE (100 pieces)

Brand: Cooper Bussmann
PartNumber: BK/S506-8-R
PackageQuantity: 100
Binding: Kitchen
Manufacturer: COOPER BUSSMANN
Label: COOPER BUSSMANN

Attributes

Key	Value
AC Voltage Rating	250V AC
Alarm Contact	No
Alternate Mfr Part Numb.	S506-8-R
Alternate Part No.	504-BK/S506-8-R
Amperage Rating:	8 A
Amps	8A
Application	Electronic Circuits
Approval Agency	BSI, CSA, cULus, IMQ, P.
Approvals	CSA, cURus
ASIN	B011NMCZC4
Batteries Required?	No
Body Material	Glass
Body Style	Cylindrical
Brand	Bussmann / Eaton, Eaton.
Breaking Capacity @ Rat.	80A
Case Diameter	5.2 mm
Case Length	20 mm
Catalog Number	S506-8-R
Category	Circuit Protection, Gla.
Characteristic	Time Delay
Color	-
Compatible Fuse Block S.	HTB
Connection	Ferrule End X Ferrule E.
Connection:	Ferrule End X Ferrule E.
Contact Material	Brass
Country of Origin	CN - China, China, CN
Country of Origin (subj.	China
Current Rating	8 A
Current Rating (Amps)	8 A, 8A
DC Cold Resistance	0.007 Ohms
DC Voltage Rating	Not Rated
Description	FUSE GLASS 8A 250VAC 5X.
Detailed Description	8 A 250 V AC DC Fuse Ca.
Diameter	5 mm
Diameter (in)	0.2 "
Diameter (mm)	5 mm
Digi-Key Part Number	283-S506-8-R-ND
Dimensions	20 mm L x 5.2 mm D
ECCN	EAR99
Element	Single
Equivalent Brand and Se.	Bussmann GDC, Bussmann .
Equivalent Series	218, GDC, GDG, S506
Family Series	Bussmann Fuses, S506 Se.
Fits Fuse Block Style	Nonrejection
Functionally Equal To	Bussmann GDC, Littelfus.
Fuse Amps	8A
Fuse Holder Code	E
Fuse Interrupt Rating	80A at 250VAC
Fuse Size	20mm L x 5mm dia
Fuse Size/Group	5 mm x 20 mm
Fuse Type	Time Delay Fuse, Cartri.
Gross Weight	0.1 lbs
Indicator Style	Without Indicator
Interrupt Rating	35 A @ 250 V, 80 A, 80A.
Item	Fuse
Item Number	S506-8-R
Item Package Quantity	10
Item Type	Electronic, Time Delay
Lead Free Status / RoHS.	RoHS Compliant
Length	20 mm
Length (In)	0.8 "
Length (mm)	20.32 mm
Length (Straight Wirewa.	20 mm
Made in USA	No
Manufacturer	Eaton Bussmann, Eaton, .
Manufacturer Part No.	BK/S506-8-R
Manufacturer Part Number	S506-8-R
Manufacturer Product Nu.	S506-8-R
Manufacturer Standard L.	10 Weeks, 9 Weeks
Material	Glass
Melting I?t	255.8
Mfr	Eaton - Electronics Div.
Mounting Style	Holder / Clip
Mounting Type	Requires Holder, Holder
Net Weight	0.005 lbs
Operating Temperature	-
Package	Bulk
Package / Case	5mm x 20mm
Package Type	Cartridge
Packaging	Bulk, Bulk Pack
Part # Aliases	BK-S506-8-R
Part Number	S506-8-R
Product	Specialty Fuses
Product Category	Cartridge Fuses
Product Series	S506
Product Status	Active
Product Type	Glass Fuse
Resistance	7 mOhms
Response Time	Slow Blow
RoHS	Yes
Series	S506
Size	5.20 mm Diameter X 20.0.
Size / Dimension	0.205" Dia x 0.787" L (.
Size:	5.20 mm Diameter X 20.0.
Special Features	Interrupt Rating 80 Amp.
Speed	Time Delay
Standard	UL (CANADA AND US), CSA.
Standard Package	5
Standard:	UL (CANADA AND US), CSA.
Standards	cURus Recognition Guide.
Termination Style	Clip
Trip Indicator	No
Type	European Ferrule Fuse, .
Type:	Electronic, Time Delay
Unit Weight	1 g
UNSPSC	39121607
UPC	051712639859
Visual Indication	Glass Fuse
Voltage (AC)	250 VAC
Voltage Rating	250 VAC
Voltage Rating - AC	250V, 250 V
Voltage Rating AC	250 V
Voltage Rating:	250 VAC

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Hotenda	H575192	1.2656	1	100		Eaton (formerly Cooper Bussmann)		1.2656 @ 100
swatee.com	BK/S506-8-R	2.14	1	100		Eaton		2.14 @ 100
Newark	01P4134	2.32	10	100		EATON BUSSMANN		2.32 @ 100
Arrow	BK/S506-8-R	2.842	1	1000		Eaton		2.842 @ 100
iodParts	S506-8-R	2.85	100	805		Eaton		2.85 @ 100
Walker Industrial	S506-8-R	2.92	5	100	17	Cooper Bussmann		2.92 @ 100
AI Consolidated	S506-8-R-BUSSMANN	3.19	1	100		Bussmann Eaton Cooper Fuses	0.0251	3.19 @ 100
Dale-Electric	S506-8-R	3.2	1	100		Cooper Bussmann		3.2 @ 100
Onlinecomponents.com	S506-8-R	3.31	10	1117		Cooper Bussmann		3.31 @ 100
Waldom	Eaton Electronics S506-8-R	3.54	15	237		Eaton Electronics		3.54 @ 100
Mouser	504-S506-8-R	4.31	1	100		Cooper Bussmann		4.31 @ 100
NEP Electronics	S506-8-R	4.52	1	354		Bussmann		4.52 @ 100
Galco	S506-8-R-BUSS	4.84	5	100		Bussmann	0.1	4.84 @ 100
us.rs-online.com	74057195	4.88	5	100		Eaton Electronics		4.88 @ 100
Digi-Key	1878118	5.02	5	237		Eaton - Electronics Division		5.02 @ 100
crescentelectric.com	36745	6.73	1	100		Eaton Bussmann series		6.73 @ 100
Radwell	BKS5068R	6.95	100	100		BUSSMANN		6.95 @ 100
Platt.com	0966806	6.99	1	100		Eaton/Bussmann Series		6.99 @ 100
Graybar	25142387	7.0672	5	100		Bussmann (Eaton)		7.0672 @ 100
Airline Hydraulics	BUSSMANN BK/S506-8-R	8.84	1	6900		Cooper Bussmann		8.84 @ 100
Zoro	G2273345	18.95	1	194		Bussmann	0.02	18.95 @ 100
sustainablesupply.com	C1177000	32.12	1	100		Eaton	0.02	32.12 @ 100
AmazonTP	B07S15VGPY	48.96	1	100	1	Bussmann / Eaton		48.96 @ 100
AmazonSC	B011NMCZC4	51.4	1	100		Eaton Bussmann		51.4 @ 100
Raptor Supplies	AB8WUP	55.979235	1	100		BUSSMANN		55.979235 @ 100
turtle.com	BUS BK/S506-8-R	482.56	1	100		Eaton		482.56 @ 100
