Description:

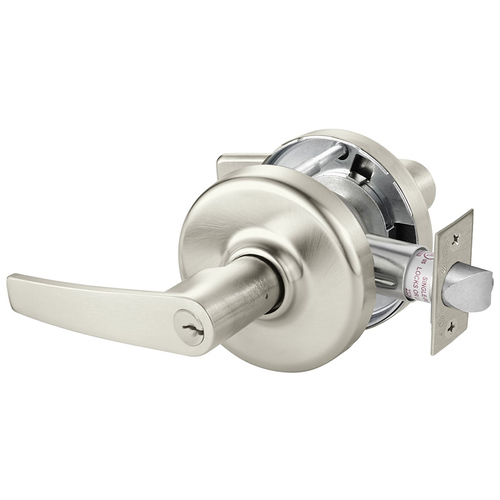

<p><b>Storeroom Lever, Grade 1, AZD Design, Satin Nickel</b></p><p>The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.</p><p>The CL3500 Series is a heavy-duty Grade 1 lever lockset that is ideal for commercial, institutional, and multifamily applications.</p><p><p>The CL3500 series is non-handed and has solid cast levers. It is ideal to be used in settings such as hotels, restaurants, retail centers, interior offices, and apartment complexes.</p>
Attributes
| Key ^ | Value |
|---|---|
| ANSI Function | F86 - Storeroom |
| Base Material | Brass or Bronze |
| Bolt Protection | 1/2" |
| Case Height | 10.5" |
| Case Length | 15.5" |
| Case Volume | 2359.875 |
| Case Width | 14.5" |
| Color | Satin Nickel Plated Clear Coated |
| Color Code | 619/US15 |
| Cylinder Type | Conventional Cylinder |
| Fire Rated | 3 Hours {A} |
| Function | 57-Storeroom or Closet |
| Grade | Grade 1 |
| Hand | Not Handed |
| Key(s) | Blank |
| Keying | 0 Bitted |
| Keyway | L4 |
| Latch Backset Dim | 2-3/4" |
| Latch Number | 600F10 |
| Latch Type | Dead Latch (Guarded) |
| Lever/Knob Design | AZ - Armstrong |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Package Height | 4.5" |
| Package Length | 10" |
| Package Qty | 1 |
| Package Volume | 337.5 |
| Package Width | 7.5" |
| Rose/Escutcheon Design | D - Rose |
| Screws | Combination |
| Special Marks | Conventional cylinder, Fire rated 3 Hours {A} |
| Strike Height | 4-7/8" |
| Strike Number | 217L13 |
| Strike Type | ASA |
| Strike Width | 1-1/4" |
| Thickness | 1-3/8" - 1-3/4" |
