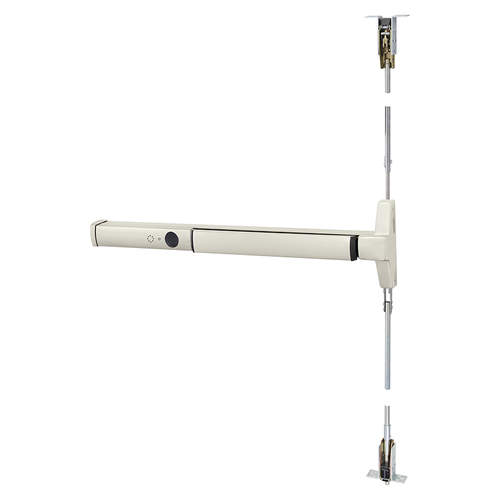

Corbin Russwin ED4800 619 W048 M61
Corbin Russwinzoom
manufacturer:
Description:
<p><b>Narrow Stile Concealed Vertical Rod Exit Device, Alarmed (Less Cylinder), 48", Satin Nickel</b></p><p>Available in Rim, Surface Vertical Rod, Concealed Vertical Rod and electrified, the ED4000 Series meets all your aluminum and metal door needs. Features Meets ANSI Grade 1 requirements Easy-to-use pushpad for quick egress and ADA compliance Low projection for barrier-free code compliance Heavy-duty construction Quiet operation Closed on all sides - no projecting parts to inhibit egress Devices accommodate various function trims for flexibility Through-bolted trims for strength, security, durability, smooth operation and easy installation Wide range of designs and finishes to match other Corbin Russwin products One-point dogging Devices satisfy UL/cUL safety requirements</p><p>Designed for applications on narrow stile full glass, aluminum and metal doors in high-use and high-abuse situations.</p><p><p>ED4000 Series devices can be teamed with a variety of Corbin Russwin trims to provide desired functions, styles and finishes in new construction and renovations.</p>

Attributes

Key ^Value
Base MaterialBrass or Bronze
ColorSatin Nickel Plated Clear Coated
Color Code619/US15
Device Length48 In.
Device TypeConcealed Vertical Rod
Dogging OptionsHex Key Dogging
Door Height84 In.
Door MaterialAluminum
Door Thickness1 3/4 In.
Door Width36 In. - 48 In.
Electric OptionsAlarm Kit Battery Powered
Fire Rated, Includes Cylinder(s), Includes TrimNo
GradeGrade 1
HandReversible
Mechanical FunctionExit Only, Accepts Trim
Minimum Stile Size2 In.
Package Height5.75"
Package Length39.75"
Package Qty1
Package Volume2342.765625
Package Width10.25"
Physical AppearanceNarrow Stile Pushpad
Special MarksComplies with ADA accessibility guidelines
Strike Bottom650F57-8
Strike Top650F54-8
Touch Bar Options"Push to Exit Alarm Will Sound"
