mpn:
brand:
manufacturer:
MPN:
Description:

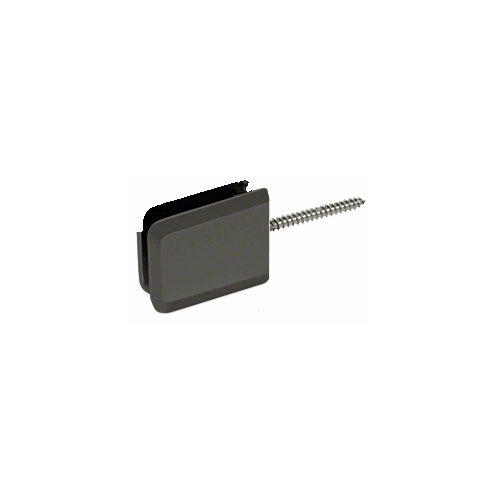

<br/><b>CRL Beveled Wall Mount Movable Transom Clamps</b> are designed to rotate a movable transom off a wall. They can also be used in combination with our Glass-to-Glass Movable Transom Clamps. Clamp must be centered on the transom to achieve balanced movement. Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. BGCU1G.<br/><b>SPECIFICATIONS:</b><br/><b>Materials:</b> Solid Brass<br/><b>Glass Thickness Range:</b> 3/8" to 1/2" (3 to 12 mm)<br/><b>Glass Fabrication Required:</b> BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom<br/><b>Includes:</b> Gaskets<br/><b>NOTE:</b> Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. .<br/><p>.</p>
Weight:
0.49
Weight:
0.49 LB
Preferred Price:
34.64
Price:
34.64
Min Simple Price:
18.93
Absolute Min Price:
26.88
Min Price:
26.88
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
NTY4MA:::BGC186MBL
sku:
NTY4MA::LP:BGC186MBL@y0
condition:
11
seller:
thebuilderssupply.com
amzMan:
cr laurence
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Finish | Matte Black |
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 to 1/2 |
| Material | Brass |
| Mounting Style | Wall / Ceiling Mount |
| Mounting Type | Wall / Ceiling Mount |
| Size | 2" (51 mm) Wide x 2" (51 mm) High |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | thebuilderssupply.com | CRL_BGC186MBL | 18.93 | 18.93 | 1 | 132 | C.R. Laurence | 18.93 @ Qty: 1+ | ||
 | DK Hardware | BGC186MBL | 20.03 | 20.03 | 1 | In Stock | CR Laurence | 20.03 @ Qty: 1+ |
