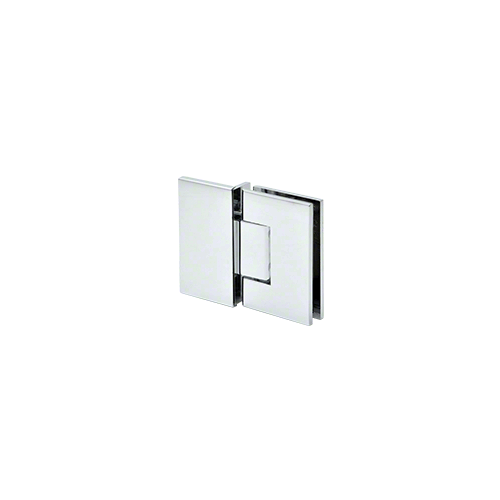

CR Laurence MEL054CH

<br/><b>CRL Melbourne Series Hinges</b> feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers Four versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.<br/> Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).<br/> Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).<br/><b>SPECIFICATIONS:</b><br/> Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass<br/> Construction: Solid Brass<br/> Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).<br/> Closing Type: Self-Centering when within 15 degrees of closed position.<br/> Cut-Out Required<br/> Includes: Gaskets, Screws, and Glass Fabrication Dimensions<br/> For more information contact CRL Shower Door Technical Sales Department.<br/><b>Product Warning:</b><br/>CRL Shower Door Hinges are designed for residential or hotel shower use. <br/><p>.</p>

7.5

7.5 LB

202.89

202.89

114.63

162.77

162.77

21

NTY4MA:::MEL054CH

NTY4MA::5K:MEL054CH@y0

11

DK Hardware

cr laurence

False

True
