CR Magnetics CR7310-EH-24D-.11-A-CD-TRC-I

mpnCR7310-EH-24D-.11-A-CD-TRC-I
brandname: CR Magnetics
manufacturername: CR Magnetics

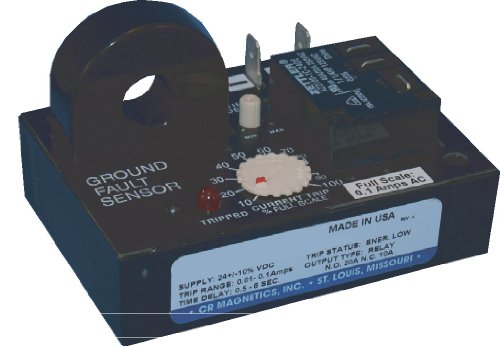

CR Magnetics CR7310-EH-24D-.11-A-CD-TRC-I Ground Fault Sensor Relay with Optoisolated Triac, Zero Crossing and Internal Transformer, 24 VDC, Energized on High Trip, 0.1 to 1.0 AAC Trip Range, 0.5 to 6 Second Trip on Delay

CR Magnetics CR7310-EH-24D-.11-A-CD-TRC-I Ground Fault Sensor Relay with Optoisolated Triac, Zero Crossing and Internal Transformer, 24 VDC, Energized on High Trip, 0.1 to 1.0 AAC Trip Range, 0.5 to 6 Second Trip on Delay

zoom

Brand: CR Magnetics
PartNumber: CR7310-EH-24D-.11-A-CD-TRC-I
Size: 0.1-1 AAC Trip Range, 0.5-6 Second Trip on Delay
PackageQuantity: 1
Binding: Misc.
Manufacturer: CR Magnetics
Label: CR Magnetics

Attributes

Key	Value
Altitude	2000 meters max
Hysteresis	5% Max
Input Supply Power	Typical 80mA; Max 100mA
Minimum switch voltage	24 VAC RMS
Mounting	3/16" dia. clearance ho.
Off-state leakage	60 ua at 240 VAC max
Off-state voltage	240 VAC RMS max
On state current	500 mA RMS max. continu.
Power-On Delay	100 MS MAX
Switching mode	Zero crossing
Terminals	2 at 1/4" Male QC
Weight	0.5 LBS
