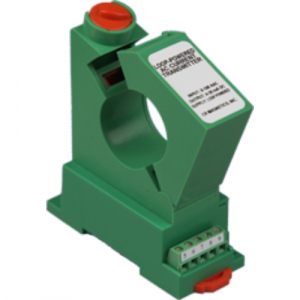

CR Magnetics CR4120S-150

mpn:

CR4120S-150

brand:

CR Magnetics Inc.

manufacturer:

CR Magnetics Inc.

MPN:

CR4120S-150

Weight:

0.25

Weight:

0.25 LB

Preferred Price:

353.85

Price:

353.85

Min Simple Price:

199.92

Absolute Min Price:

283.88

Min Price:

283.88

Dimensions:

[5.0, 5.0, 2.0]

qty:

simpleSku:

NDI0MQ:::CR4120S-150

sku:

NDI0MQ::28:CR4120S-150@y0

condition:

seller:

Digi-Key

amzMan:

cr magnetics

HazMat:

False

DropShip:

False

Key ^	Value
Accuracy	?0.5%
Altitude	2000 meter max
Basic Accuracy	0.5%
Calibration	True RMS Sensing
Category	Sensors, Transducers
Cleaning	water-dampened cloth
Current - Sensing	150A
Current - Supply (Max)	40mA
For Measuring	AC
Frequency	20Hz ~ 5kHz
Frequency Range	20 Hz - 5 KHz
FS Relative Humidity	5% to 95%, Non-Condensing
Installation Category	CAT II
Insulation Voltage	2500 VDC
Linearity	10% to 100% FS
Linearity, Sensitivity, Supplier Device Package	-
Mfr	CR Magnetics Inc.
Mounting Type	DIN Rail, Panel
MTBF	Greater than 100 K hours
Number of Channels	1
Operating Temperature	0?C to +60?C, 0?C ~ 60?C
Output	Ratiometric, 4mA ~ 20mA
Output Load	4-20 mADC - 0 to 500 ? 0-5 VDC - 2K ? or Greater
Package	Bulk
Package / Case	Module
Part Status	Active
Polarization	Bidirectional
Pollution Degree	2
Response Time	250ms, 250 ms max. 0-90%
Sensor Type	Transformer w/Conditioning
Series	CR4100
Supply Current	Typical 25mA; Max 40mA
Supply Voltage	24 VDC ? 10%
Thermal Drift	500 PPM/?C
Torque Specs	3.0-inch lbs. (0.4Nm)
Vibration Tested To	IEC 60068-2-6,1995
Voltage - Supply	24V
Weight	0.5 lbs

Seller	Supplier SKU	Requested Price ^	Calc MOQ Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Digi-Key	2500471	199.92	199.92	1	In Stock	CR Magnetics Inc.		199.92 @ Qty: 1+
primebuy.com	CR4120S-150	304.0	304.0	1	In Stock	CR Magnetics	0.5	304.0 @ Qty: 1+
blackhawksupply.com	CR4120S-150	308.63	308.63	1	In Stock	CR Magnetics		308.63 @ Qty: 1+
