CRL-USALUM ALUM-BGC188GM-VCP-1

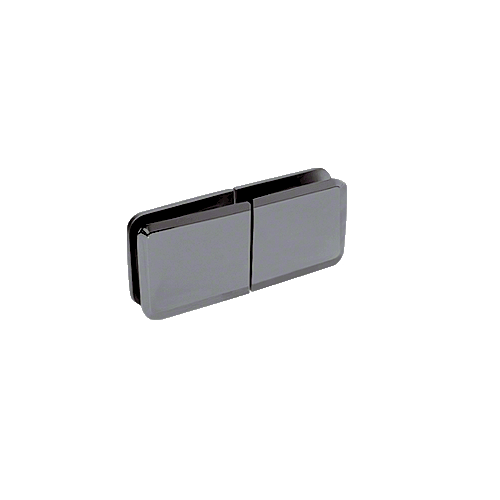

<b>CRL Beveled 180? Glass-to-Glass Movable Transom Clamps</b> allow the rotation of a movable transom off of an inline fixed glass panel. This style Clamp can also be used in combination with our Cat No. BGC186 Wall Mount Movable Transom Clamp. Clamp must be centered on the transom to achieve balanced movement. <br/>Replacement parts are Cat. Nos. 90295A120 (Nylon<br/> Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).<br/><b>NOTE:</b> Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. .<br/><b>SPECIFICATIONS:</b><br/><b>Materials:</b> Solid Brass<br/><b>Glass Thickness Range:</b> 3/8" to 1/2" (3 to 12 mm)<br/><b>Glass Fabrication Required:</b> BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom<br/><b>Includes:</b> Gaskets
