CRL-USALUM ALUM-ESS3BR-VCP-1
CRL-USALUMzoom
manufacturer:
Description:

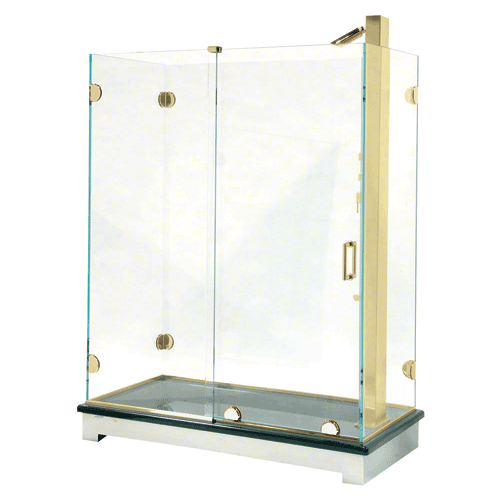

<br/> The <b>CRL Essence Series Basic Sliding Shower Door Kit</b> with Squared Corner Rollers is a headerless system that offers a frameless appearance both vertically and horizontally. Smooth and quiet operation is the cornerstone of the Essence Series. Water management is achieved horizontally via the use of the bottom track, and vertically with the use of our DK98L Clear Seal. The anti-derail/anti-pinch guard features of the squared corner shaped bottom rollers make them unique. For use with only 1/2" (12 mm) thick tempered safety glass (not included). Stocked in four popular finishes.<br/><b>Kit Includes</b><br/> Two - Bottom Rollers<br/> One - Spanner Wrench for Roller Adjustment<br/> One - Top Door Guide<br/> One - 64" (1.63 m) Bottom Track<br/> One - 98" (2.49 m) U-Channel<br/> One - 98" (2.49 m) Plastic L-Seal<br/> One - SDCEC12 End Cap for Channel<br/> One - 1/16" (1.6 mm) Neoprene Setting Block<br/><b>NOTE:</b> Glass Brackets, Handle or Knob, and Other Accessories Sold Separately.<br/><b>Product Warning:</b><br/>Maximum Door Size: Must not exceed 84" (2.13 m) in height or 127 lbs. (57.6 kg).<br/>GE90S9(Square) or CL90S(Round) Wall Clamps must be used on fixed panel and are sold separately.<br/><p>.</p>

Attributes

Key ^Value
Basic Kit FabricationNotch Required for Bottom Rollers, Holes Required for Top Guide
Color, Finish, Finish/ColorPolished Brass
Glass Thickness, Glass Thickness Range1/2" (12 mm)
Glazing Thickness1/2
Maximum Door Size34" (864 mm) Wide, 84" (2.13 m) High, or 127 lbs. (57.6 kg)
Maximum Door Weight127
Maximum Door Width34
new attributegold
Roller LocationBottom
