CRL-USALUM ALUM-HD72S-VCP-1
CRL-USALUMzoom
manufacturer:
Description:

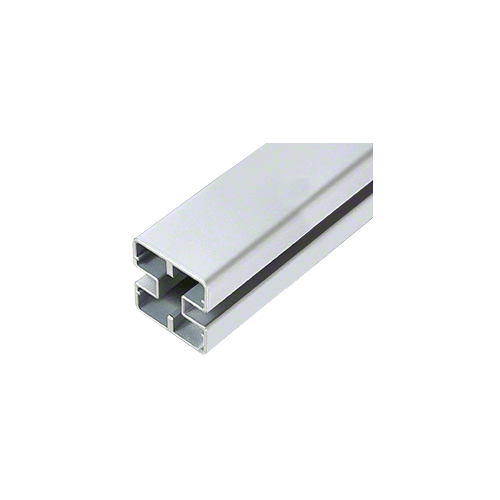

<br/> HD Posts can be used to fabricate Heavy-Duty Posts used at the end of a barrier, or to join two panels at 180 degrees. They can accommodate 1/4" to 3/8" (6 to 10 mm) panels when dry glazed with vinyl, and 1/2" to 9/16" (12 to 13.52 mm) panels when wet glazed. They are available in seven standard colors, plus mill aluminum, with custom colors available on request. NOTE: Maximum Post Spacing is 72" (1829 mm) on center. Maximum square footage should not exceed 24 square feet per panel.<br/><b>Product Warning:</b><br/>All ARS/AWS products are painted to order and are non-refundable or returnable.<br/><p>.</p>

Attributes

Key ^Value
Corner ConditionsOutside
Depth13/16
Finish, Finish/ColorSilver Metallic
Glazing Thickness - Dry Glaze1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze1/2 Inch
Height2-3/4
Length72
MaterialAluminum
TypePost Only
Width2-5/8
