CRL-USALUM ALUM-SGC186SC-VCP-1

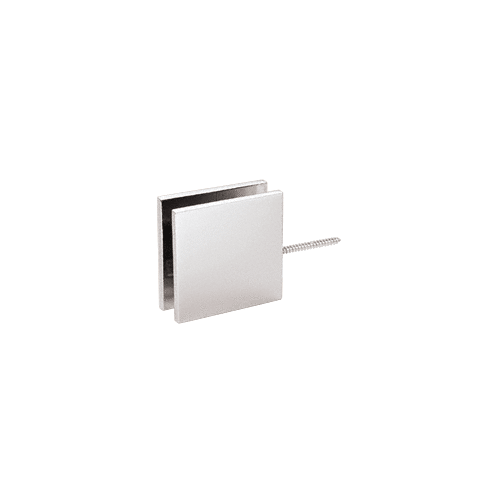

<b>CRL Square Wall Mount Movable Transom Clamps</b> are designed to rotate a movable transom off a wall. Clamp must be centered on the transom to achieve balanced movement. Maximum movable transom size is 16" x 30" (406 x 762 mm). <b>NOTE:</b> Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. SGCU1G. <br/><b>SPECIFICATIONS:</b><br/><b>Materials:</b> Solid Brass<br/><b>Glass Thickness Range:</b> 3/8" to 1/2" (10 to 12 mm)<br/> Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes<br/><b>Includes:</b> Gaskets and Mounting Screws<br/><b>NOTE:</b> Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. .
