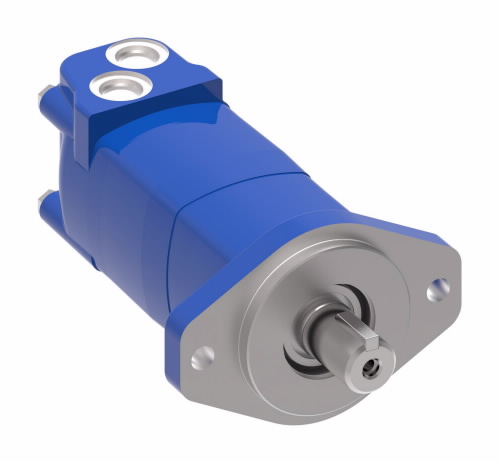

104-4079-006 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key | Value |
|---|---|
| Application | Swing motor, Brush Cutters & mowers, Harvesting equipment |
| Brake type | Hydraulic |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port |
| Design code11 | 6 |
| Displacement | 306.6 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 75 litre per minute |
| Front seal kit if available | 61258-000 |
| Geroler options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Identification | None |
| Intermittent pressure | 240 bar |
| Low pressure relief | None |
| Maximum speed | 246 revolutions per minute |
| Model Code | M02187AF02AA0100010000000ABAAF |
| Mounting Type | Standard, 2 Bolt; 101.6 [4.00] Pilot Dia. 14.35 [.565] Dia. Holes On 146.0 [5.75] Dia. Bolt Circle. SAE B |
| Output shaft type | Straight |
| Paint | Primer Low Gloss Black |
| Port type | .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports |
| Pressure flow option | None |
| Product height | 4.00 |
| Product height uom | inch |
| Product length | 10.05 |
| Product length uom | inch |
| Product material | Cast Iron |
| Product trade name | 2000 Series |
| Product weight | 25.00 |
| Product weight uom | pound |
| Product width | 6.96 |
| Product width uom | inch |
| Recommended system working temperature | -34?C to 82?C |
| Seal options | Standard |
| Shaft options | None |
| Special assembly instructions | None |
| Special features hardware | None |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 765 newton metre |
| Two speed ratio | None |
| Valve options | None |
| Viscosity recommendation | 70 Saybold universal second |
