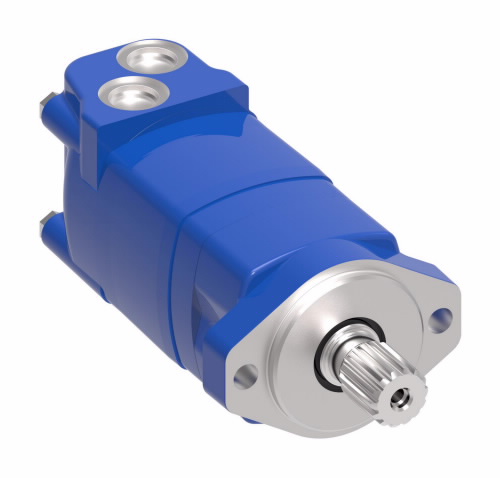

104-4776-006 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Swing motor, Brush Cutters & mowers, Harvesting equipment |
| Brake type | Hydraulic |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port |
| Design code11 | 6 |
| Displacement | 194.8 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 75 litre per minute |
| Geroler options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Identification, Low pressure relief, Pressure flow option, Shaft options, Special assembly instructions, Special features hardware, Two speed ratio, Valve options | None |
| Intermittent pressure | 260 bar |
| Maximum speed | 385 revolutions per minute |
| Model Code | M02119AH16AA0100013000000ABAAF |
| Mounting Type | Standard, 4 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle |
| Output shaft type | Straight |
| Paint | Primer Low Gloss Black |
| Port type | .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports |
| Product height uom, Product length uom, Product width uom | inch |
| Product height, Product width | 4.28 |
| Product length | 9.25 |
| Product material | Cast Iron |
| Product trade name | 2000 Series |
| Product weight | 23 |
| Product weight uom | pound |
| Recommended system working temperature | -34?C to 82?C |
| Seal options | High Pressure Shaft Seal |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 540 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
