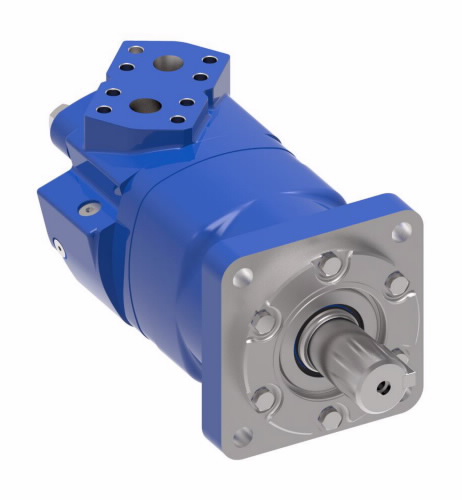

112-1180-006 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Other: Mobile equipment, Snow Removal, Mowing, Spayer, Trencher, Wood products |
| Brake type, Identification, Low pressure relief, Paint, Pressure flow option, Shaft options, Special assembly instructions, Special features hardware, Valve options | None |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| Design code11 | 6 |
| Displacement | 624.2 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 150 litre per minute |
| Geroler options, Seal options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Intermittent pressure | 221 bar |
| Maximum speed | 241 revolutions per minute |
| Model Code | M06381AB04AA02000000000000000F |
| Mounting Type | Standard; (SAE CC); 4 Bolt; 127.0 [5.00] Pilot Dia. 14.35 [.565] Dia. Holes On 162.0 [6.38] Dia. Bolt Circle |
| Output shaft type | Straight |
| Port type | 1.3125-12 UN-2B SAE O-Ring Ports - Staggered Ports |
| Product height | 5.78 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 14.00 |
| Product material | Cast Iron |
| Product trade name | 6000 Series |
| Product weight | 61.50 |
| Product weight uom | pound |
| Product width | 5.80 |
| Recommended system working temperature | -34?C to 82?C |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 1480 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
