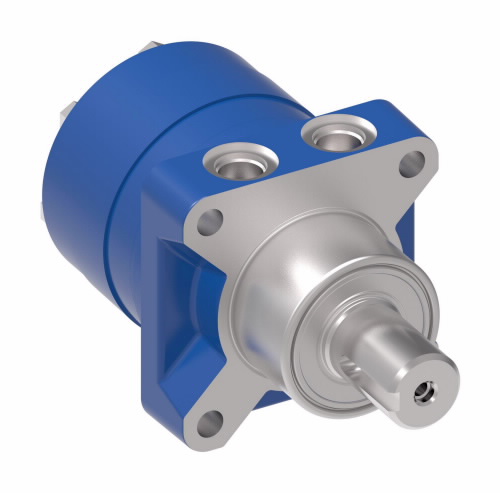

184-0066-002 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key | Value |
|---|---|
| Application | Other: Scissor Lift, Boom Lift, Industrial Sweeper, Mower |
| Brake type | Hydraulic |
| Case flow options | None |
| Design code11 | 2 |
| Displacement | 234 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 75 litre per minute |
| Front seal kit if available | 9900436-000 |
| Geroler options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Identification | None |
| Intermittent pressure | 275 bar |
| Low pressure relief | None |
| Maximum speed | 323 revolutions per minute |
| Model Code | MDL143AA02AA000000000AB00B |
| Mounting Type | Wheel, 4 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 147.6 [5.81] Dia. Bolt Circle, 127.0 [5.00] Dia. Rear Mount Pilot |
| Output shaft type | Taper |
| Paint | Primer Low Gloss Black |
| Port type | .875-14 UNF-2B SAE O-Ring Ports |
| Pressure flow option | None |
| Product height | 5.35 |
| Product height uom | inch |
| Product length | 7.17 |
| Product length uom | inch |
| Product material | Cast Iron |
| Product trade name | Delta Series |
| Product weight | 31.50 |
| Product weight uom | pound |
| Product width | 5.35 |
| Product width uom | inch |
| Recommended system working temperature | -34?C to 82?C |
| Seal options | Standard |
| Shaft options | None |
| Special assembly instructions | Standard Rotation - CCW |
| Special features hardware | None |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 651 newton metre |
| Two speed ratio | None |
| Valve options | None |
| Viscosity recommendation | 70 Saybold universal second |
