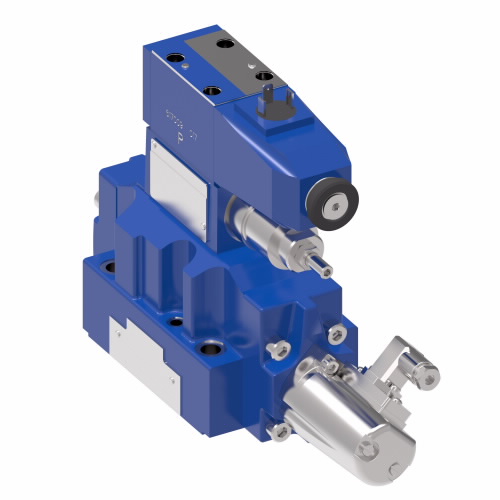

871806 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Actuation identification | Solenoid A, Solenoid B |
| Actuation type | Solenoid Controlled Pilot Operated |
| Application | Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water) |
| Body Material, Body material7 | Gray Iron |
| Build orientation | Solenoid A at A port end, solenoid B at B port end |
| Build type | Spring centered |
| Check valve, Customer programmable, Light | No |
| Coil voltage, Coil voltage8 | 24 Volt DC |
| Communication bus, Communication bus9, Diode, Manual override, Special features, Special features17 | None |
| Connector Type, Connector type10 | DIN 43650 |
| Current | 1.4 ampere |
| Design code, Design code11 | 12 |
| Eccn | EAR99 |
| Feedback sensor, Reducer module, Symmetrical flow | Yes |
| Feedback type | 2-Stage Lvdt |
| Flow Rate, Flow rate12 | 160 litre per minute |
| Fluid cleanliness | 17/15/12 |
| Fluid compatibility, Fluid compatibility13 | Anti wear petroleum oils (L HM) |
| Function | Directional Control Valve |
| Icc2 | IV Proportional Valves |
| Interface | ISO4401-07/NFPA D07/CETOP 7/NG16 |
| Leakage | Standard |
| Model Code | KFDG5V-7-33C160N-X-VM-U1-H1-12 |
| On board electronics | KF |
| Performance | High-Performance |
| Pilot supply | Internal |
| Pressure drop at rated flow | 5 bar |
| Pressure rating, Tank port rating | 350 bar |
| Product height | 8.55 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 10.63 |
| Product trade name | KFDG5V-7 12 Design |
| Product weight | 20.90 |
| Product weight uom | pound |
| Product width | 3.75 |
| Seal Material, Seal material16 | Buna-N |
| Spool center condition | Reduced A & B Ports Pressure at Null |
| Spring arrangement | C |
| Stage | Two Stage |
| Sub brand | Vickers |
| Valve mount type | Subplate |
| Working temperature max | 70 degree Celsius |
| Working temperature min | -20 degree Celsius |
