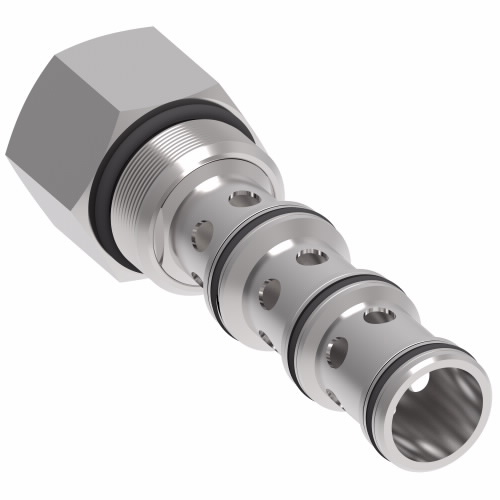

889314 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Harvesters, refuse haulers, mobile and industrial applications |
| Cavity | C-16-4 |
| Eccn | EAR99 |
| Flow rate12 | 113 litre per minute |
| Fluid compatibility13 | MIL?H?5606, SAE 10, SAE 20, etc |
| Function | Shuttle Valve |
| Housing | No |
| Housing material | Aluminum |
| Icc2 | SICV Directional Control Valves |
| Installation type | Screw-in Cartridge |
| Leakage | 164 cc/min maximum @ 210 bar |
| Model Code | DSV4-16-O-0-40 |
| Number of housing ports, Number of valve ports | 4 |
| Operating temperature | -40?C to +120?C |
| Pilot pressure | 2.75 bar |
| Port type | Cartridge Only |
| Pressure rating | 350 bar |
| Product height uom, Product length uom, Product width uom | inch |
| Product height, Product width | 1.50 |
| Product length | 4.87 |
| Product trade name | MSV1-12 Series |
| Product weight | 1.12 |
| Product weight uom | pound |
| Recommended filtration level | 18/16/13 microns |
| Seal Type | Buna-N |
| Special features17 | None |
| Spool configuration | Open |
| Style | Spool |
| Sub brand | Vickers |
| Valve torque into cavity | Aluminium housing - 108-122 Nm; Steel housing - 136-149 Nm |
