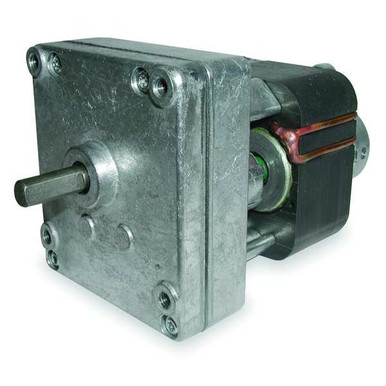

Dayton 1MBF4
Daytonzoom
mpn:
brand:
manufacturer:
MPN:
Description:
AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 2.2 RPM, Maximum Torque 32 in-lb, Overhung Load Capacity 41 ft-lb, Rotation CW, Output Shaft Height 1.41 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 1526:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B
Weight:
10.0
Weight:
10.0 LB
Preferred Price:
181.33
Min Offer Price:
108.28
Price:
181.33
Min Simple Price:
99.09
Absolute Min Price:
140.69
Min Price:
140.69
Dimensions:
[10.0, 7.0, 5.0]
qty:
21
simpleSku:
MTI3MQ:::1MBF4
sku:
MTI3MQ::V6:1MBF4@y0
condition:
11
seller:
Zoro
amzMan:
dayton
HazMat:
False
DropShip:
True

Attributes

Key Value
Agency ComplianceUL/CSA
Ambient (C)40
ApplicationConveyor Toasters, X-ray Equipment, Pumps, Ingredient Motors, Water Softeners, Vending, Food and Restaurant Equipment, Amusement Devices, Valve Actuators, Security Systems, Displays
BearingsPorous Bronze on Gear Case and Motor
BrandDayton
Current Stock22
Dimension A3.89 in
Dimension B1.57 in
EnclosureOpen
Full Load Amps0.38
Full Load Torque (In.-Lbs.)32.0
Gear CaseZinc Die Cast
Gear Case MaterialDie Cast Zinc
Gear Ratio1526:1
Gear TypeSpur
Gearmotor Brake TypeNone
Gearmotor EnclosureOpen
Gearmotor Mounting PositionAll Angle
Gearmotor Phase1
Gearmotor RotationCW
Gearmotor Shaft OrientationParallel
Gearmotor Shaft TypeSingle
Gearmotor TypeAC Gearmotor
Gearmotor Voltage115V AC, 115 V AC
GearsAll Spur Gears
HousingDie Cast Zinc
Hz60
Input HP1/476
Insulation ClassB
International ShippingNo
ItemAC Gearmotor
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft4", 4 in
Length Less Shaft (In.)4
LubricationGrease, Grease Filled
Max. Ambient Temp.40 Degrees C
Max. Torque32 in.- lbs., 32.0 in-lb
Motor TypeShaded Pole
Mount Hole Center-to-Center Length2.38 in
Mount Hole Center-to-Center Width2.38 in
MountingAll Position
Mpn1MBF4
Nameplate RPM2.2, 2.2 RPM, 2
No Load RPM2.3
Output Shaft Diameter5/16 in
Output Shaft Height1.41 in
Output Shaft Length3/4 in
Overall Height2.92 in
Overall Width3.16 in
Overhung Load41 lbs.
Overhung Load (Lb.)41
Phase1
RotationCW
SealsGasketed Gear Case, Lip Type on Output Shaft
Shaft Dia. (Dimension U)5/16"
Shaft Dimensions (In.)5/16 x 3/4
Shaft Length (Dimension V).75", 0.75"
Shaft OrientationParallel
Ship Weight4 lbs.
SKUZO-G1451125
StandardsUL/CSA/CE
SubCategoryPower Transmission
Thermal ProtectionNone
TypeParallel Shaft
UPC190735146316
Voltage Rating115
