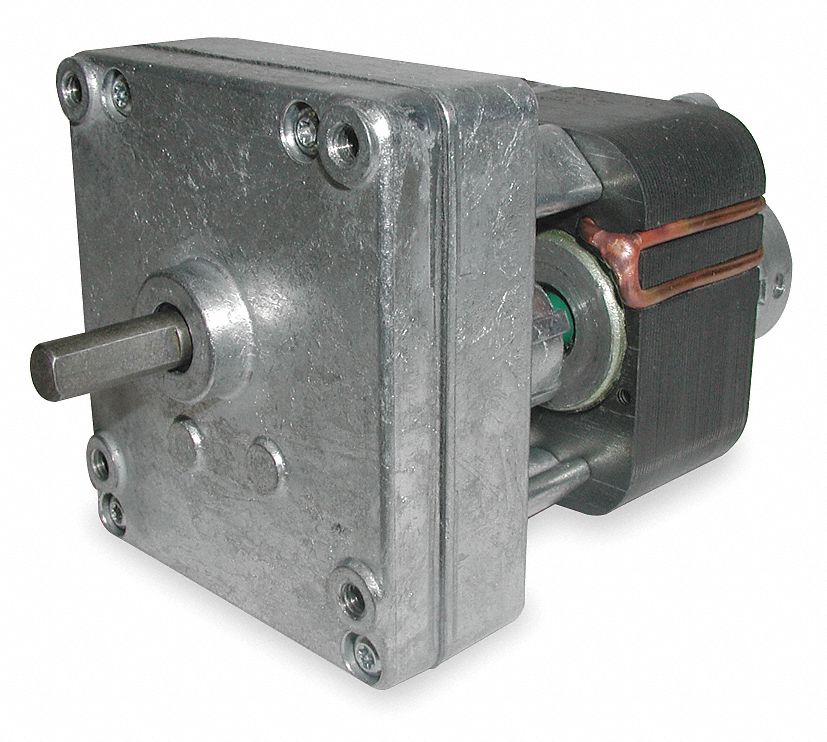

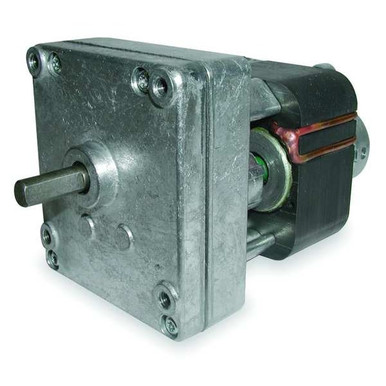

Attributes
| Key | Value |
|---|---|
| Agency Compliance | UL/CSA |
| Ambient (C) | 40 |
| Application | Conveyor Toasters, X-ray Equipment, Pumps, Ingredient Motors, Water Softeners, Vending, Food and Restaurant Equipment, Amusement Devices, Valve Actuators, Security Systems, Displays |
| Bearings | Porous Bronze on Gear Case and Motor |
| Brand | Dayton |
| Current Stock | 42 |
| Dimension A | 3.8 in |
| Dimension B | 1.17 in |
| Enclosure, Gearmotor Enclosure | Open |
| Full Load Amps | 0.57 |
| Full Load Torque (In.-Lbs.) | 26.0 |
| Gear Case | Zinc Die Cast |
| Gear Case Material, Housing | Die Cast Zinc |
| Gear Ratio | 294:1 |
| Gear Type | Spur |
| Gearmotor Brake Type, Thermal Protection | None |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Phase, Phase | 1 |
| Gearmotor Rotation, Rotation | CW |
| Gearmotor Shaft Orientation, Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type, Item | AC Gearmotor |
| Gearmotor Voltage | 115V AC, 115 V AC |
| Gears | All Spur Gears |
| Hz | 60 |
| Input HP | 1/138, 1/138 hp |
| Insulation Class | B |
| International Shipping | No |
| Length Less Shaft | 3-7/8", 3 7/8 in |
| Length Less Shaft (In.) | 3-7/8 |
| Lubrication | Grease, Grease Filled |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Torque | 26.0 in-lb, 26 in.- lbs. |
| Motor Type | Shaded Pole |
| Mounting | All Position |
| Mpn | 1MBF6 |
| Nameplate RPM | 11.5, 11.5 RPM |
| No Load RPM | 12 |
| Overhung Load | 41 lbs. |
| Overhung Load (Lb.) | 41 |
| Seals | Gasketed Gear Case, Lip Type on Output Shaft |
| Shaft Dia. (Dimension U) | 5/16" |
| Shaft Dimensions (In.) | 5/16 x 3/4 |
| Shaft Length (Dimension V) | .75", 0.75" |
| Ship Weight | 4 lbs. |
| SKU | ZO-G2428912 |
| Standards | UL/CSA/CE |
| SubCategory | Power Transmission |
| Type | Parallel Shaft |
| UPC | 190735146330 |
| Voltage Rating | 115 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| grainger.ca | WWG1MBF6 | 88.35993282 | 88.35993282 | 1 | In Stock | DAYTON | 3.75 | 88.35993282 @ Qty: 1+ | ||
 | Zoro | G2428912 | 97.44 | 97.44 | 1 | 146 | Dayton | 3.75 | 97.44 @ Qty: 1+ | |
| AmazonTP | B000BG07R4 | 113.05 | 113.05 | 1 | In Stock | 2 | DAYTON | 113.05 @ Qty: 1+ | ||
 | simsupply.com | ZO-G2428912 | 113.14 | 113.14 | 1 | 42 | Dayton | 113.14 @ Qty: 1+ | ||
 | sustainablesupply.com | C1661142 | 129.84 | 129.84 | 1 | In Stock | Dayton | 3.75 | 129.84 @ Qty: 1+ | |
| emotorpro.com | 1MBF6 | 146.42 | 146.42 | 1 | In Stock | Dayton | 4.0 | 146.42 @ Qty: 1+ | ||
 | Raptor Supplies | AB2JEA | 160.116255 | 160.116255 | 1 | In Stock | DAYTON | 160.116255 @ Qty: 1+ |
