Description:

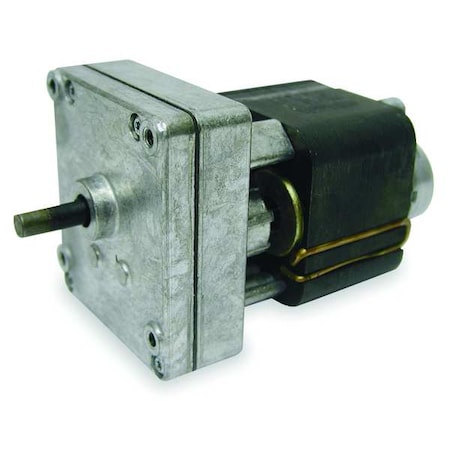

AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 6.7 RPM, Maximum Torque 50 in-lb, Overhung Load Capacity 41 ft-lb, Rotation CW, Output Shaft Height 1.41 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 504:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
Attributes
| Key | Value |
|---|---|
| Dimension A | 4.2 in |
| Dimension B | 1.57 in |
| Gearmotor Brake Type | None |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Phase | 1 |
| Gearmotor Rotation | CW |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type | AC Gearmotor |
| Gearmotor Voltage | 115V AC |
| Item | AC Gearmotor |
| Length Less Shaft | 4 3/4 in |
| Max. Torque | 50.0 in-lb |
| Mount Hole Center-to-Center Length | 2.38 in |
| Mount Hole Center-to-Center Width | 2.38 in |
| Nameplate RPM | 6.7 RPM |
| Output Shaft Diameter | 5/16 in |
| Output Shaft Height | 1.41 in |
| Output Shaft Length | 3/4 in |
| Overall Height | 2.92 in |
| Overall Width | 3.16 in |
| Shaft Dia. (Dimension U) | 5/16" |
| Shaft Length (Dimension V) | 0.75" |
