Dayton 2CNK9

mpn2CNK9
brandname: DAYTON
manufacturername: DAYTON

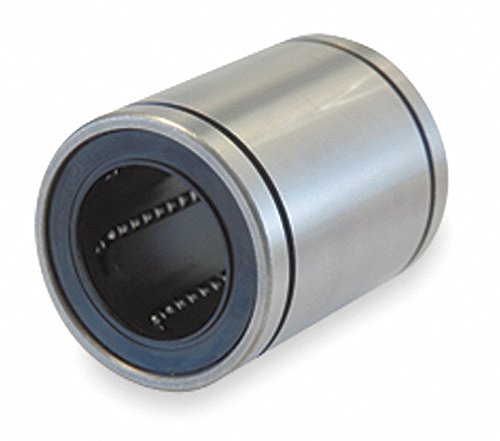

Ball Bushing Bearing, Closed, Bore 1/2 in

Brand: Dayton
PartNumber: 2CNK9
Model: 2CNK9
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
(hidden) builder	2CNK9 Dayton
Accelerated Speed	-
Agency Compliance	-
Application	-
Between Grooves (In.)	0.967/0.951
Between Grooves (mm)	-
Bore Dia.	0.5 in
Brand & Series	DAYTON
Country of Origin (subj.	China
Dimension A (In.)	-
Dimension A1 (In.)	-
Dimension A2 (In.)	-
Dimension B	0.967/0.951 in
Dimension B (In.)	-
Dimension B2	-
Dimension C	-
Dimension C (In.)	-
Dimension C1	-
Dimension C2	-
Dimension d	-
Dimension D (In.)	-
Dimension D1	0.821 in
Dimension E	-
Dimension E (In.)	-
Dimension E1 (In.)	-
Dimension F	-
Dimension F (In.)	-
Dimension F1 (In.)	-
Dimension G	-
Dimension G (In.)	-
Dimension G1 (In.)	-
Dimension H (In.)	-
Dimension H1	-
Dimension H1 (In.)	-
Dimension H2	-
Dimension H3	-
Dimension HA	-
Dimension HB	-
Dimension J	-
Dimension JA	-
Dimension JB	-
Dimension K	-
Dimension L	1.25 in
Dimension L (In.)	-
Dimension N Dia. (In.)	-
Dimension N2 (In.)	-
Dimension S (In.)	-
Dimension T	-
Dimension V (In.)	-
Dimension W	0.046 in
Dimension X	-
Dimension XZ	-
Dimension Y	-
Dimension YZ	-
Dynamic Load Capacity (.	-
For Use With	Linear Motion Shafts
Height	-
Included Wiper Seals	Two Integral Wipers
Includes	-
Inside Dia.	1/2 in
Inside Dia. Tolerance	+/-.0004
Item	Linear Ball Bearing
Length (In.)	1.25 in
Length (mm)	-
Load Capacity	-
Load Capacity (Lbf.)	-
Material	Stainless Steel/Polymer.
Max. Pv	-
Maximum Operating Tempe.	176 Degrees F
Minimum Operating Tempe.	-4 Degrees F
Mounting Bolt (In.)	-
Mounting Hole (In.)	-
Operating Temperature R.	-4 Degrees F to 176 D.
Outside Dia.	0.875 in
Outside Dia. Tolerance	+/-0.00050
Required Hole Location	-
Required Housing Bore D.	-
Required Housing Bore D.	-
Retention Hole Dia. (In.	-
Retention Hole Dia. (mm)	-
Retention Hole Location	-
Retention Hole Location.	-
Seal	-
Self-Alignment	Yes
Series	DAYTON
Shaft Dia. (In.)	-
Slot Angle (Degrees)	-
Slot Width (In.)	-
Slot Width (mm)	-
Static Load Capacity (L.	255
Static Load Capacity (N)	255 lbf
Steady State Speed	5000 in/min
System of Measurement	Inch
Temp. Range (F)	0 - 176
Type	Closed
Use w/Ball Bushing Numb.	-
Width	-
Withstand Temp. (Deg. F)	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2659474	31.33	1	In Stock		Dayton	0.05	31.33 @ 1
	sustainablesupply.com	C2980194	35.23	1	In Stock		Dayton	0.05	35.23 @ 1
