Dayton 2CNL1

B007TNR4P0

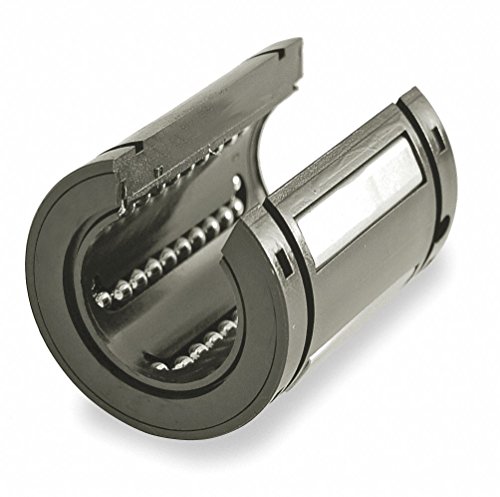

Ball Bushing Bearing, Open, Bore 3/4 in

Ball Bushing Bearing, Open, Bore 3/4 inzoom

Attributes

Key Value
Between Grooves (In.)1.170/1.154
Between Grooves (mm)1.17 in
Bore Dia.0.75 in
BrandDayton
Current Stock47
Dimension B1.170/1.154 in
Dimension D (In.)1.25 in
Dimension D11.176 in
Dimension L1.625 in
Dimension W0.056 in
Dynamic Load Capacity (.470 lbf
For Use WithSupport and Feather Rai.
Inside Dia.3/4 in
Inside Dia. Tolerance+/-.0004
International ShippingNo
ItemLinear Ball Bearing, Ba.
Length (In.)1.625 in
MaterialStainless Steel/Polymer.
Maximum Operating Tempe.176 Degrees F
Minimum Operating Tempe.-4 Degrees F
Mpn2CNL1
Outside Dia.1.25 in
Outside Dia. Tolerance+/-0.00065
Retention Hole Dia. (In.0.136 in
Retention Hole Dia. (mm)0.136 in
Retention Hole Location0.125
Self-AlignmentYes
SeriesDayton
SKUZO-G3129865
Slot Angle (Degrees)60
Slot Width (In.)0.438 in
Static Load Capacity (L.600
Static Load Capacity (N)600 lbf
Steady State Speed5000 in/min
SubCategoryPower Transmission
System of MeasurementInch
Temp. Range (F)0 - 176
TypeOpen
UPC190735217566

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG312986549.15139Dayton0.249.15 @ 1
thumbzoomsustainablesupply.comC167228754.731In StockDayton0.254.73 @ 1
grainger.caWWG2CNL159.566898421In StockDAYTON0.259.56689842 @ 1
thumbzoomsimsupply.comZO-G312986564.13147Dayton64.13 @ 1
