mpn:
brand:
manufacturer:
MPN:
Description:

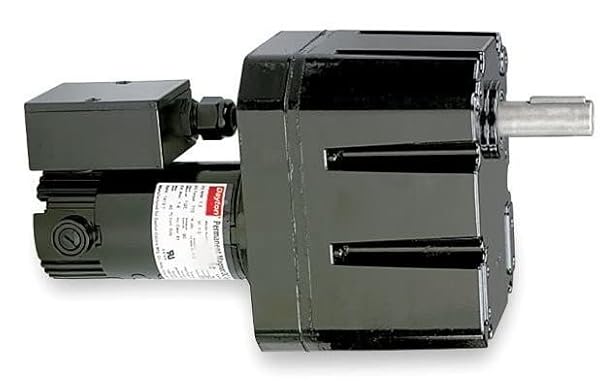

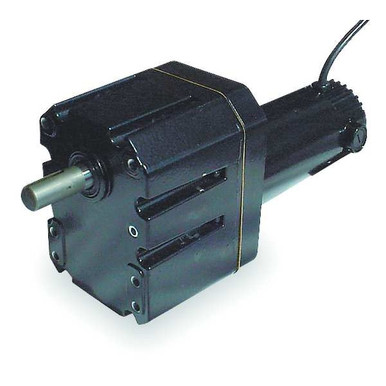

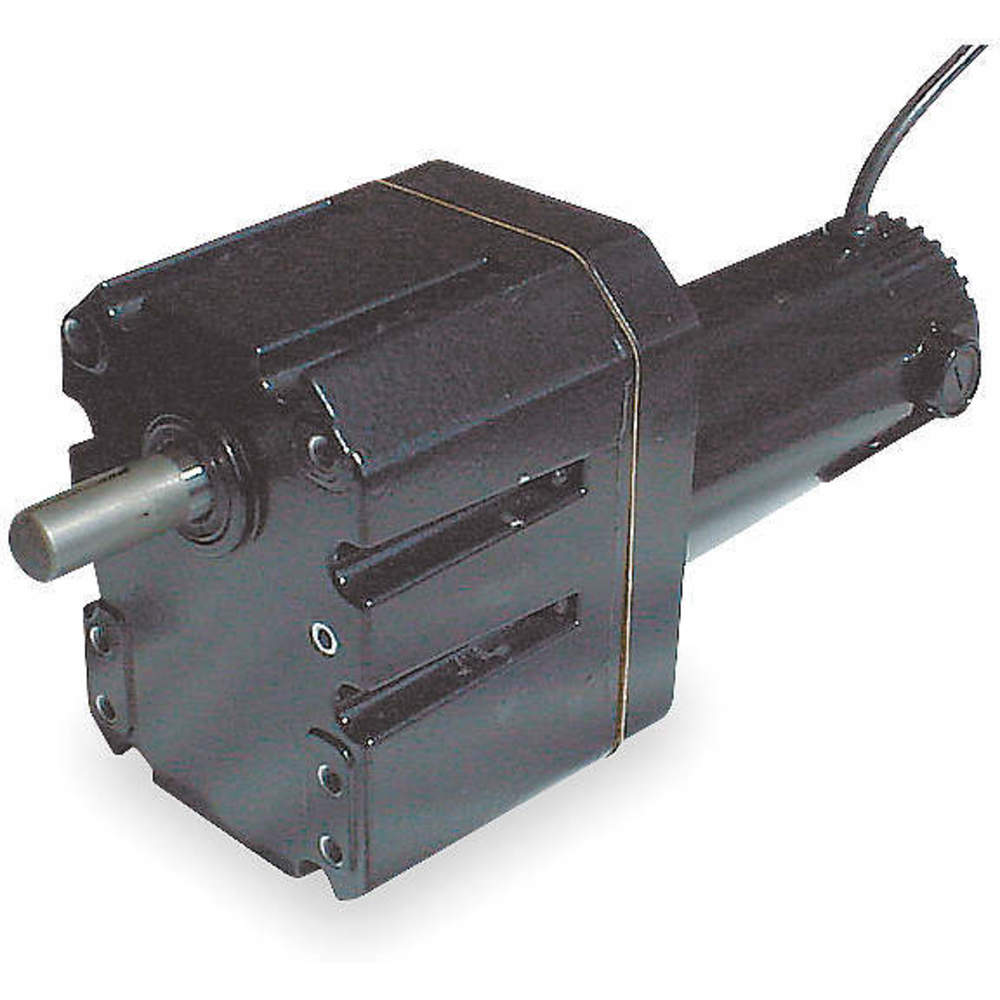

DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 6.5 RPM, Maximum Torque 710 in-lb, Overhung Load Capacity 900 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 276:1, Input Horsepower 1/6 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Needle Throughout
Weight:
1.3125
Weight:
21.0 LB
Preferred Price:
1198.27
Price:
1198.27
Min Simple Price:
676.99
Absolute Min Price:
961.32
Min Price:
961.32
Dimensions:
[20.0, 10.0, 9.0]
qty:
21
simpleSku:
MTI3MQ:::2H592
sku:
MTI3MQ::KW:2H592@y0
condition:
11
seller:
Zoro
amzMan:
dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Ambient (C) | 40 |
| Bearings | Needle Throughout with Thrust Balls on Case, Ball on Motor |
| Brand | Dayton |
| Brushes | Externally Replaceable |
| Current Stock | 9 |
| Dimension A | 12.43 in |
| Dimension D | 3.13 in |
| Dimension H | 4.67" |
| Enclosure | TENV |
| Full Load Amps | 1.00, 1.0 A |
| Full Load Torque (In.-Lbs.) | 710.0 |
| Gear Case, Housing Material | Die Cast Aluminum |
| Gear Material | Hardened Steel |
| Gear Ratio | 276:1 |
| Gear Type, Gears | Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9 |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Shaft Orientation, Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type, Item | DC Gearmotor |
| Gearmotor Voltage | 90V DC, 90 V DC |
| Input HP | 1/6 |
| International Shipping, Reversible Shaft Output | No |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 12 1/2 in, 12-1/2" |
| Length Less Shaft (In.) | 12-1/2 |
| Lubrication | Permanent Heavy Fluid Gear Oil |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Torque | 710 in-lb, 710 in-lbs |
| Motor Type | Permanent Magnet DC |
| Mounting | All Position |
| Mpn | 2H592 |
| Nameplate RPM | 6.5 RPM, 6.5, 7 |
| Output Shaft Diameter | 3/4 in |
| Output Shaft Length | 1 7/8 in |
| Overall Length | 14-3/8", 14 3/8 in |
| Overhung Load | 900 lbs. |
| Overhung Load (Lb.) | 900 |
| Phase | DC |
| Rear Shaft Encoder/Pulse Generator Mounting, Tachometer Feedback | Yes |
| Replacement Brushes | DTN6YHY6, 6YHY6 |
| Rotation | Reversible |
| Seals | Spring Loaded Lip Type on Input and Output Shaft |
| Shaft Dia. (Dimension U) | 3/4" |
| Shaft Dimensions (In.) | 3/4 x 1 7/8 |
| Shaft Length (Dimension V) | 1-7/8" |
| Ship Weight | 21 lbs. |
| SKU | ZO-G0367814 |
| Standards | C-UL Recognized, UL Recognized, UL Recognized, C-UL Recognized |
| SubCategory | Power Transmission |
| Thermal Protection | None |
| Type | Parallel Shaft |
| UPC | 190735219355 |
| Voltage Rating | 90VDC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0367814 | 676.99 | 676.99 | 1 | 1 | Dayton | 21.0 | 676.99 @ Qty: 1+ | |
 | sustainablesupply.com | C1672336 | 772.71 | 772.71 | 1 | In Stock | Dayton | 21.0 | 772.71 @ Qty: 1+ | |
 | simsupply.com | ZO-G0367814 | 801.22 | 801.22 | 1 | 9 | Dayton | 801.22 @ Qty: 1+ | ||
| emotorpro.com | 2H592 | 817.5 | 817.5 | 1 | In Stock | Dayton | 21.0 | 817.5 @ Qty: 1+ | ||
| grainger.ca | DTN2H592 | 876.94058338 | 876.94058338 | 1 | In Stock | DAYTON | 21.0 | 876.94058338 @ Qty: 1+ | ||
 | Raptor Supplies | AB9ZUG | 1045.8284265 | 1045.8284265 | 1 | In Stock | DAYTON | 1045.8284265 @ Qty: 1+ |
