Dayton 2H604

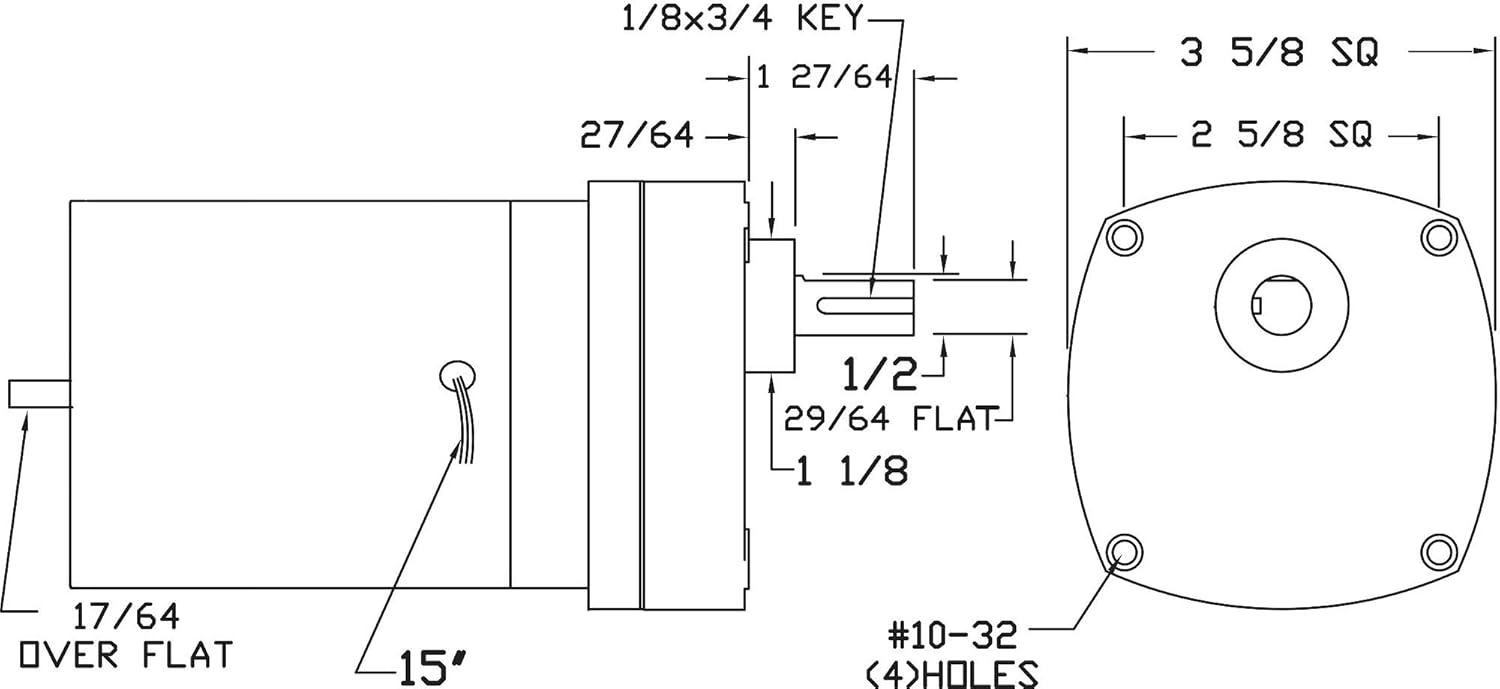

AC gear motor, voltage 115/230VAC, phase 1, Hz 50/60, shaft orientation parallel, Nameplate RPM 4.6, max. Torque 160 in.-Lb., overhung load 115 lb., input HP 1/20, gear ratio 362: 1, full load Amps 0.38/0.22, enclosure TENV, thermal protection none, max. Ambient Temp. 40 Degrees C, rotation reversible, mounting all position, motor Type permanent split capacitor, Length less shaft 7-1/2", brake adaptable to 5X400, bearings needle throughout, ball on motor, lubrication permanent heavy fluid gear oil, housing die cast aluminum, gear case material die cast aluminum, gears hardened steel, 1st stage helical, subsequent stages spur, gear material hardened steel, gear Type helical first stage/subsequent stages spur, seals spring loaded lip Type on input and output shaft, RPM range 0 to 15
