| Application | Used in Close Coupled Pump Applications |
| Body Dia. | 6-1/2" |
| Conduit Box | Cast Aluminum with Buna-N Gasketed Cover |
| Country of Origin (subject to change) | Unknown |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Duty | Continuous |
| Endshields | Cast Aluminum |
| Frame | 145JM |
| Frame Material | Epoxy Coated |
| Full Load Amps | 8.4-7.6/3.8 |
| HP, Phase | 3 |
| Hz | 60 |
| Ins. Class | F |

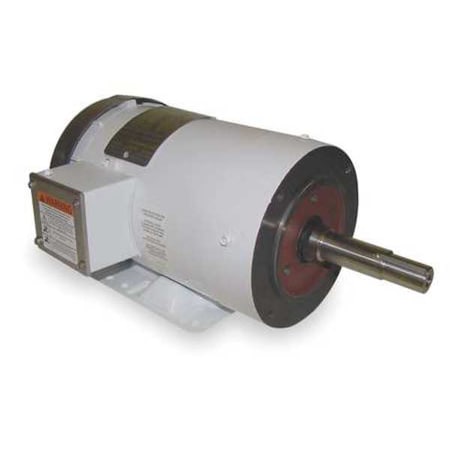

| Item | Washdown Close Coupled Pump Motor |
| Length Less Shaft | 11-1/2" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Epoxy Coated Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 3490 |
| NEMA Design | B |
| Nominal Efficiency | 85.5% |
| Overall Length | 16" |
| RPM Range | 3001-3600 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4-1/4" |
| Shaft Material | 303 Stainless Steel |
| Standards | UL Recognized (E47479), CSA Certified (LR225293), USDA Approved |
| Voltage | 208-230/460 |
| Voltage Compatibility | 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 |
