mpn:
brand:
manufacturer:
MPN:
Weight:
0.771875
Weight:
0.771875 LB
Preferred Price:
1277.94
Min Offer Price:
840.18
Price:
1277.94
Min Simple Price:
722.0
Absolute Min Price:
1025.24
Min Price:
1025.24
Dimensions:
[9.0, 8.0, 8.0]
qty:
21
simpleSku:
MTI3MQ:::2LYU7
sku:
MTI3MQ::O0:2LYU7@y0
condition:
11
seller:
Grainger
amzMan:
dayton
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Agency Compliance | CSA, BISSC Certified, Complies with NEMA Definition MG1-1.26.5, USDA Approved, Complies with 3A Dairy Standards |
| Ambient (C) | 40 Degrees C, 40 Degrees |
| Amps Holding | 0.34/0.17 |
| Application | Stops And Holds Rotating Loads On Bakery And Food Processing Equipment |
| Brake Mouting Position | Horizontal |
| Coil Volts | 115/208-230V AC Or 95/174-190V AC, 115/208-230VAC Or 95/174-190VAC |
| Converts | Converts NEMA C-Face BISSC & Stainless Steel Motors And Gear Reducers to A Geared Brake Motor. |
| Dia. (In.) | 6 7/8 in, 6-7/8 |
| Duty | Continuous |
| Enclosure | BISSC Watertight/ Dust Proof |
| Features | Easily Installed |
| Finish | White Epoxy Paint |
| For Use With | Single and Three Phase BISSC and Stainless Steel C-Face Motors Used in Food Washdown Applications |
| Function | Spring Set Brake With Automatic Reset Release |
| Hz | 60/50 |
| Includes | Hardware |
| Inrush Amps | 2.43/1.22 |

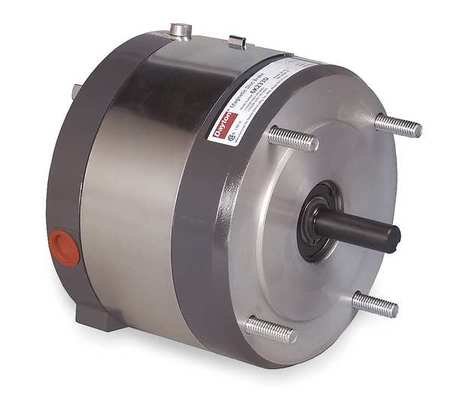

| Item | Washdown Brake |
| Lead Length | 15 in |
| Length (In.) | 4-7/8, 4.875 in |
| Lever Type | Manual Release |
| Max. HP @ 1725 RPM | 3, 3 hp |
| Max. HP @ 3450 RPM | 5 hp, 5 |
| Max. RPM | 3,450, 3,450 RPM |
| Mounts On | NEMA C-Face Flanges On Motors And Gear Reducers |
| NEMA/IEC Frame | 56C/140TC |
| Outside Diameter | 6.88 in |
| Overall Length | 4.88 in |
| Phase | single |
| Power Lead Length (In.) | 15 |
| Series | 60 Series |
| Service Factor | 1.0 |
| Shaft Dia. (In.) | 5/8 |
| Shaft Dia. (In.), Shaft Diameter | 5/8 in |
| Static Torque (Ft.-Lb.) | 10 |
| Type | Double C-Face Magnetic Disc |
| Voltage @ 50 Hz | 95/174 a 190 |
| Voltage @ 60 Hz | 115/208 a 230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Grainger | 2LYU7 | 722.0 | 722.0 | 1 | 1 | 0 | DAYTON | 722.0 @ Qty: 1+ | ||
 | Zoro | G0464371 | 947.99 | 947.99 | 1 | 1 | Dayton | 12.35 | 947.99 @ Qty: 1+ | |
 | sustainablesupply.com | C1673556 | 960.05 | 960.05 | 1 | In Stock | Dayton | 12.35 | 960.05 @ Qty: 1+ | |
 | Raptor Supplies | AC2QDD | 1426.811256 | 1426.811256 | 1 | In Stock | DAYTON | 1426.811256 @ Qty: 1+ | ||
| grainger.ca | WWG2LYU7 | 1986.26973184 | 1986.26973184 | 1 | In Stock | DAYTON | 12.35 | 1986.26973184 @ Qty: 1+ |
