Description:

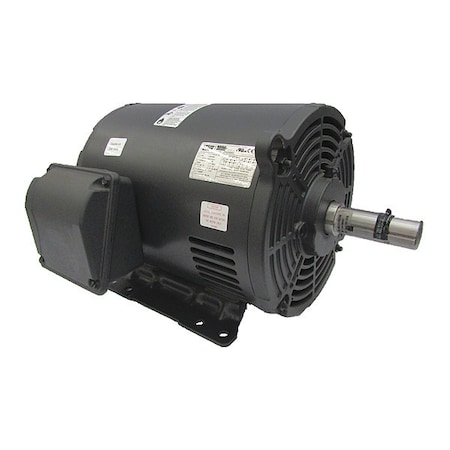

General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 25.7/12.9, 254/6U Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Steel
Attributes
| Key ^ | Value |
|---|---|
| Frame | 254/6U |
| Frame Material, Motor Frame Material | Steel |
| HP | 10 |
| Item | General Purpose Motor |
| Length Less Shaft | 18 1/16 in |
| Manufacturers Warranty Length | 3 yr |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1,770 |
| Overall Length | 21 13/16 in |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 3/4 in |
| Standards | CE, CSA, UL |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
