- mpn2NKX5
- brandname: DAYTON
- manufacturername: DAYTON

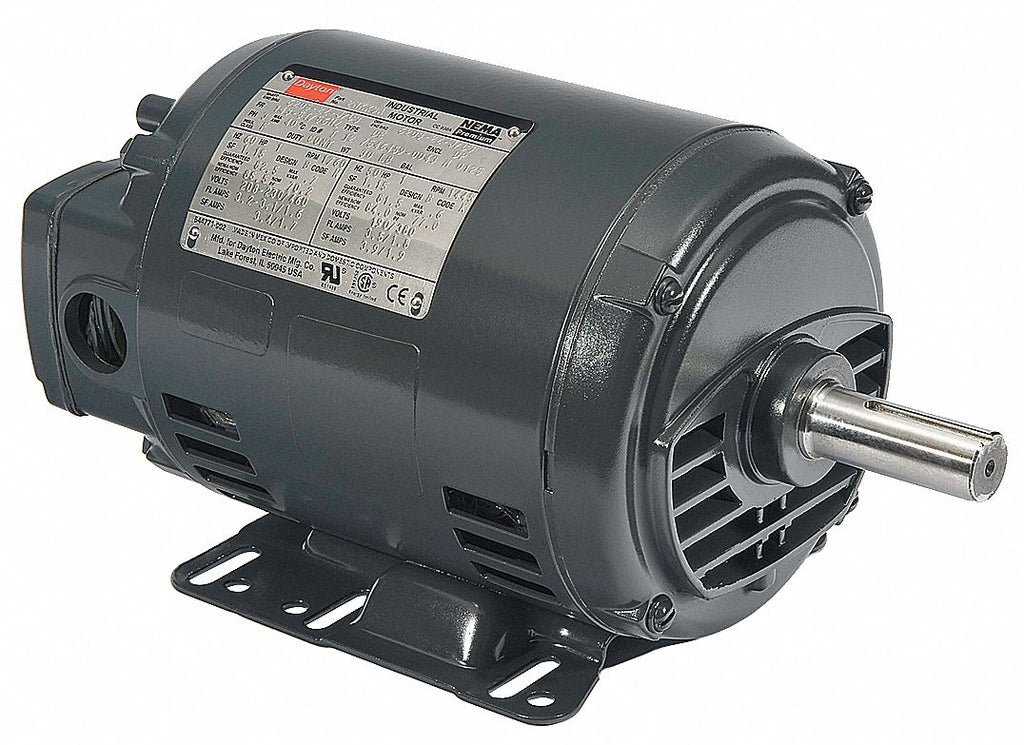

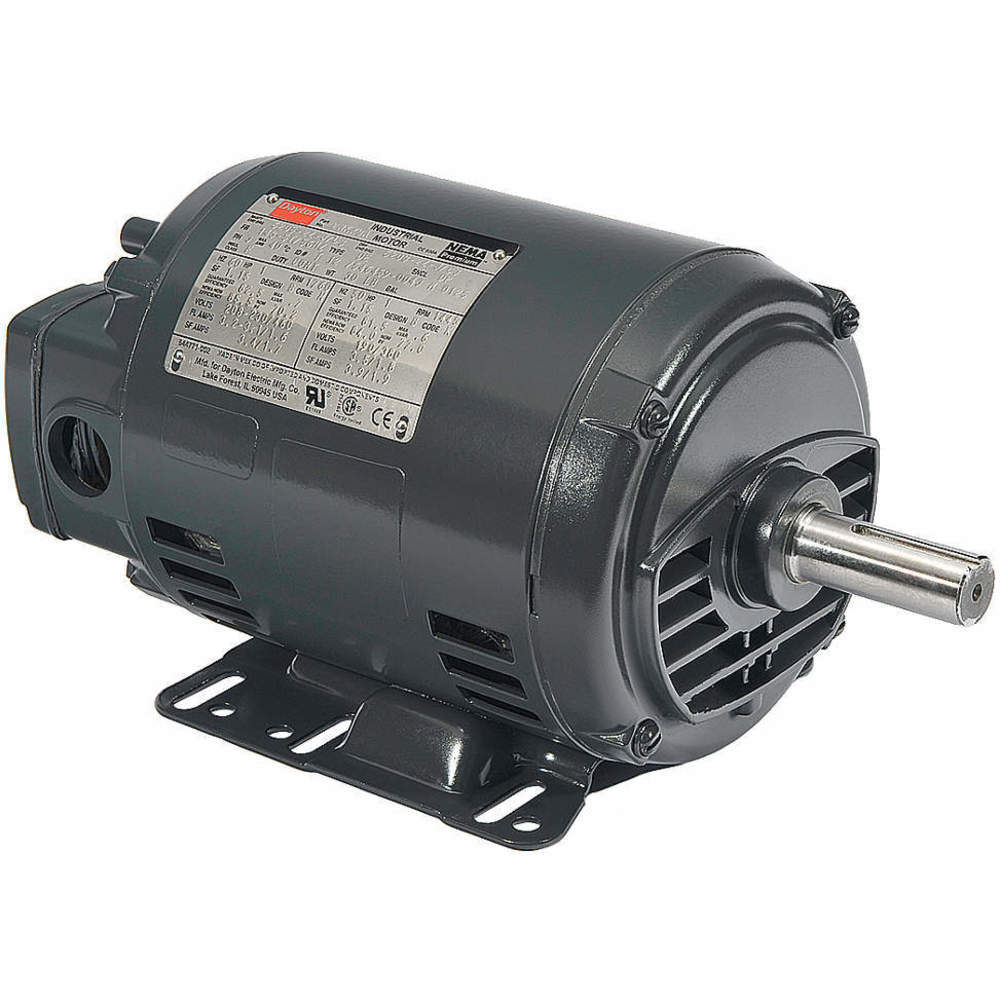

Dayton 1 HP General Purpose Motor,3-Phase,1170 Nameplate RPM,Voltage 230/460,Frame 143-5T/56HZ
- Brand: CAI - DAYTON
- PartNumber: 2NKX5
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 3.8-3.8/1.9 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC003A |
| Cross Reference | 2NKX6, 6AHZ6, 2MXT5 |
| Current Stock | 1 |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 143-5T/56HZ |
| Full Load Amps | 3.8-3.8/1.9 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1 |
| HP @ 50Hz | 975 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 10 3/8 in, 10-3/8" |
| Manufacturers Warranty . | 3 yr, 3 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-3/8" |
| Motor Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2NKX5 |
| Nameplate RPM | 1,170, 1,165 |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.5 %, 82.5% |
| Number of Speeds | 1 |
| Overall Length | 14 1/16 in, 12-5/8" |
| Phase | 3 |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1170 |
| RPM Range | 1,101-1,200 |
| Service Factor (SF) | 1.25 |
| Shaft Dia. | 7/8", 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 44 lbs. |
| SKU | ZO-G2606265 |
| Standards | CE, CSA, UL, UL Recogni. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735228401 |
| Voltage | 230/460V AC, 208-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE2NKX5 | 505.84323364 | 1 | In Stock | | DAYTON | 43.78 | 505.84323364 @ 1 |
 | Zoro | G2606265 | 665.99 | 1 | 10 | | Dayton | 43.78 | 665.99 @ 1 |
| emotorpro.com | 2NKX5 | 772.61 | 1 | In Stock | | Dayton | 44.0 | 772.61 @ 1 |
 | simsupply.com | ZO-G2606265 | 772.76 | 1 | 1 | | Dayton | | 772.76 @ 1 |
 | sustainablesupply.com | C1551821 | 887.58 | 1 | In Stock | | Dayton | 43.78 | 887.58 @ 1 |
 | Raptor Supplies | AC2WJL | 1094.55606 | 1 | In Stock | | DAYTON | | 1094.55606 @ 1 |
