- mpn2NKX9
- brandname: DAYTON
- manufacturername: DAYTON

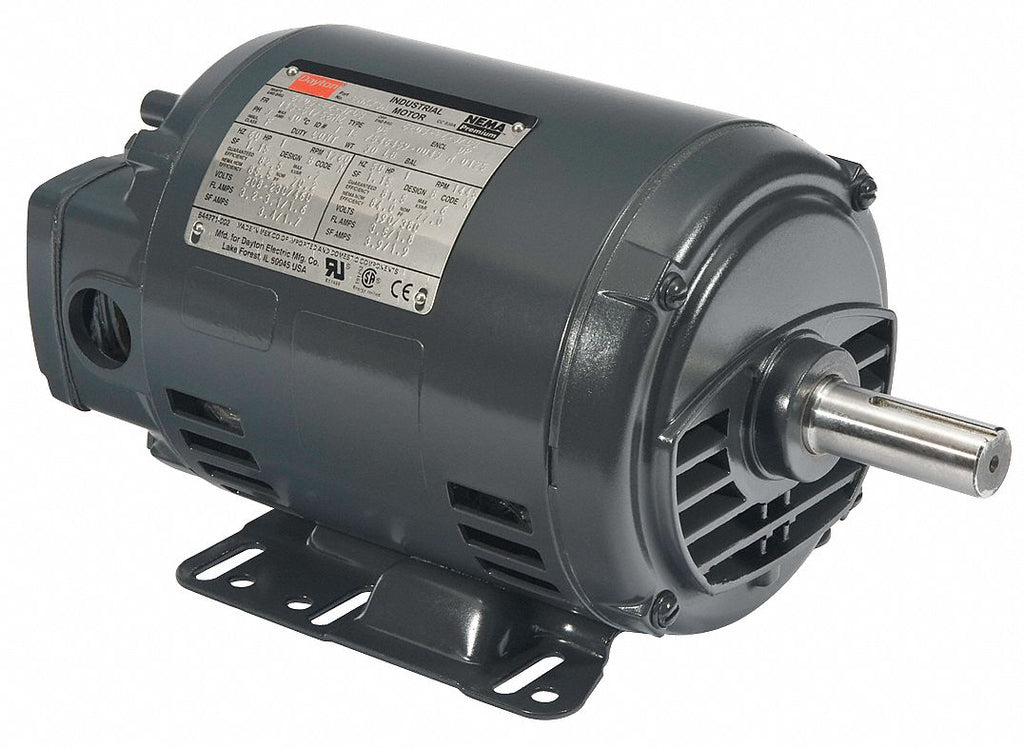

Dayton 2 HP General Purpose Motor,3-Phase,3490 Nameplate RPM,Voltage 230/460,Frame 143-5T/56HZ
- Brand: CAI - DAYTON
- PartNumber: 2NKX9
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 5.2-4.8/2.4 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC003A |
| Cross Reference | 6AJA5, 2NKY1, 2MXT9 |
| Current Stock | 3 |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 143-5T/56HZ |
| Full Load Amps | 5.0/2.5 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 2 |
| HP @ 50Hz | 2900 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 10 1/2 in |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-1/2" |
| Motor Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2NKX9 |
| Nameplate RPM | 3,515 |
| No. of Speeds | 1 |
| Nominal Efficiency | 85.5 % |
| Number of Speeds | 1 |
| Overall Length | 12-7/8", 12 13/16 in |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Promotion Restriction | Not eligible for promot. |
| Rotation | Reversible |
| RPM | 3490 |
| RPM Range | 3,001-3,600 |
| Service Factor (SF) | 1.25 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 45 lbs. |
| SKU | ZO-G0804325 |
| Standards | UL, CSA, CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735228449 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
