- mpn2NKY5
- brandname: DAYTON
- manufacturername: DAYTON

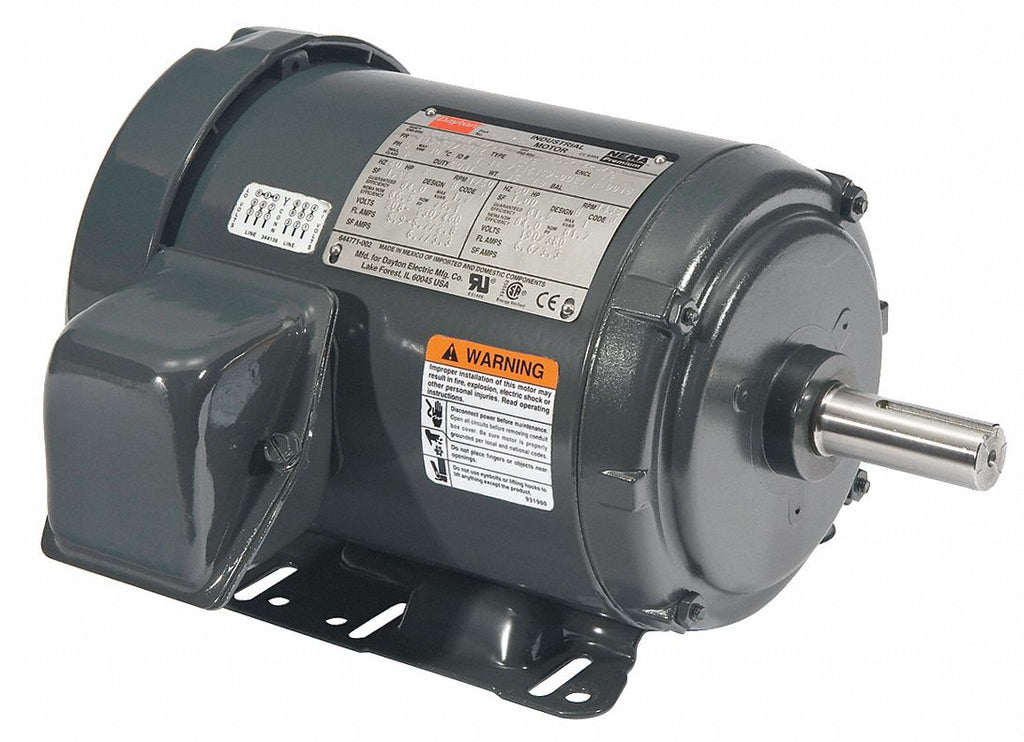

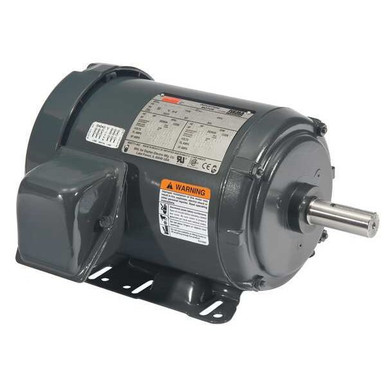

Mt, 3Ph, 1.5HP, 3490, 208-230/460, Eff 84.0
- Brand: Dayton
- PartNumber: ARDUPG2982542L12A
- PackageQuantity: 1
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 4.4-4.0/2.0 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC060A |
| Cross Reference | 2MXT6, 6AHZ9 |
| Current Stock | 9 |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Frame | 143-5T/56HZ |
| Full Load Amps | 4.0/2.00 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1 1/2, 1-1/2 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 10 3/8 in |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-3/8" |
| Motor Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2NKY5 |
| Nameplate RPM | 3,515 |
| No. of Speeds | 1 |
| Nominal Efficiency | 84 % |
| Number of Speeds | 1 |
| Overall Length | 13 in, 13" |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3505 |
| RPM Range | 3,001-3,600 |
| Service Factor (SF) | 1.25 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 38 lbs. |
| SKU | ZO-G2982542 |
| Standards | CE, CSA, UL, UL, CSA, CE |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735228494 |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B007IAY71I | 447.71 | 1 | In Stock | 5 | DAYTON | | 447.71 @ 1 |
| AmazonUNK | B007IAY71I | 447.71 | 1 | In Stock | | DAYTON | | 447.71 @ 1 |
| grainger.ca | AOS2NKY5 | 458.346489 | 1 | In Stock | | DAYTON | 37.47 | 458.346489 @ 1 |
 | Zoro | G2982542 | 508.99 | 1 | 23 | | Dayton | 37.47 | 508.99 @ 1 |
 | simsupply.com | ZO-G2982542 | 610.7 | 1 | 9 | | Dayton | | 610.7 @ 1 |
 | sustainablesupply.com | C1551827 | 645.24 | 1 | In Stock | | Dayton | 37.47 | 645.24 @ 1 |
| emotorpro.com | 2NKY5 | 694.28 | 1 | In Stock | | Dayton | 38.0 | 694.28 @ 1 |
 | Raptor Supplies | AC2WJW | 795.709629 | 1 | In Stock | | DAYTON | | 795.709629 @ 1 |
