Dayton
Daytonzoom

Dayton

mpn:
2RB59
brand:
DAYTON
manufacturer:
DAYTON
MPN:
2RB59
Description:

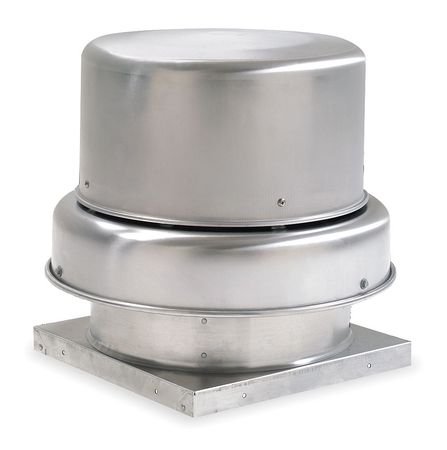

Downblast Vent, Belt Drive, 11 in
Weight:
4.125
Weight:
4.125 LB
Preferred Price:
1788.0
Price:
1788.0
Min Simple Price:
1010.17
Absolute Min Price:
1434.44
Min Price:
1434.44
Dimensions:
[32.0, 31.0, 31.0]
qty:
21
simpleSku:
ODEwOA:::2RB59
sku:
ODEwOA::E8:2RB59@y0
condition:
11
seller:
Zoro
amzMan:
dayton
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Adj. 12 3/8"H Roof Curb Stock No.2ZV82
Adj. 6 3/8"H Roof Curb Stock No.4c453
Agency ComplianceAMCA Sound & Air, CSA Certified Motor, UL/cUL 705
Airflow @ 0.000 in SP373 cfm
Airflow @ 0.000 in SP - Range, Exhaust Airflow @ 0.000 in SP - Range0 to 1,999 cfm
ApplicationIndustrial and Commercial Applications
Assembled/UnassembledAssembled
Base DiameterNot Applicable
Base Dimension19 in Square
Base Height1 3/4 in
Base Length, Base Width19"
Base ShapeSquare
Base Size - Roof Ventilators19 in x 19 in
Base Square Size - Roof Ventilators19" x 19"
Bearing TypeSealed Pillow Block
Brake Horsepower13/100 hp
BrandDayton
CFM @ 0.000-In. SP373
CFM @ 0.125-In. SP353
CFM @ 0.250-In. SP335
CFM @ 0.375-In. SP312
CFM @ 0.500-In. SP292
CFM @ 0.625-In. SP269
CFM @ 0.750-In. SP246
CFM @ 0.875-In. SP223
CFM @ 1.000-In. SP198
ColorSilver
Compatible Curb Manufacturer Part Number2RB75, 2ZV82, 4C453, 4C670, 4HX38, 4HX46
Compatible Damper Grainger Part Number4HX64
Current6.2/2.8 to 3.1 A
Current Stock3
Cutout Length14.5 in
Cutout Size14.5 in L x 14.5 in W
Damper Size12 x 12 in
Dimension A19 in
Dimension B, Overall Dia., Overall Diameter, Overall Length, Overall Width24 3/8 in
Dimension C, Overall Height24 7/8 in
Dimension D4 3/8 in
Drive Package Included, Drive Package With Motor Included, Includes Drive Package, Includes MotorYes
Drive TypeBelt-Drive
Drive Type - Roof VentilatorsBelt Drive
Duty Rating - Roof VentilatorsStandard
Electrical ConnectionPower Cord
Exhaust Airflow @ 0.125 in SP353 cfm
Exhaust Airflow @ 0.375 in SP312 cfm
Exhaust Airflow @ 0.500 in SP292 cfm
FeaturesAir Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Features a Fully Rolled Windband Bead for Increased Stability and Easy Transport, Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life, Nema 1 Junction Box Located in Motor Enclosure, Nonoverloading Centrifugal Wheel Design, Optional Nema 1 and 4 Disconnects Available
For High-Static Pressure Applications, High-Efficiency Motor, International Shipping, Speed Controllableno
Frequency60 Hz
Housing Length, Housing Width24.4 in
Housing MaterialSpun Aluminum
Housing Material FabricationSpun
Hz60
IncludesNEMA 1 Junction Box
ItemCentrifugal Downblast Roof Exhaust Fan
Item - Roof VentilatorsDownblast Ventilator
Lead TimeExpected to ship in 1-2 business days
MaterialAluminum Blade with Aluminum Housing
Max. BHP0.08/0.39/0.82 hp
Max. Inlet Temp.180 Degrees
Max. Operating Amps6.2/2.8
Maximum Ambient Temperature, Maximum Inlet Air Temperature180 Degrees F
Maximum Static Pressure1 in wc
Motor EfficiencyStandard-Efficiency Motors
Motor Enclosure DesignOpen Dripproof (ODP)
Motor HP1/4
Motor HP - Roof Ventilators1/4 hp
Motor Speed1,725 RPM
Motor Voltage115/208/230
Mount TypeRoof Curb
Mounting Location, Mounting Location - Roof VentilatorsRoof
Mpn2RB59
Number of Speeds, Phase1
Propeller Shaft Diameter, Shaft Dia. Wheel End3/4 in
Recommended 12 In. Fixed Curb Item No.2RB75
Recommended 8 In. Fixed Curb Item No.4HX38
RPM1710
SKUZO-G1621593
Sones @ 0.125-In. SP @ 5 Ft., Sones @ 0.250-In. SP @ 5 Ft.11.0
Sones @ 0.500-In. SP @ 5 Ft.10.3
Sound Level10.0 sones @ 0.625 in SP and 5 ft, 10.3 sones @ 0.500 in SP and 5 ft, 10.6 sones @ 0.375 in SP and 5 ft, 11.0 sones @ 0.125 in SP and 5 ft, 11.0 sones @ 0.250 in SP and 5 ft, 11.1 sones @ 0.000 in SP and 5 ft, 9.3 sones @ 1.000 in SP and 5 ft, 9.5 sones @ 0.875 in SP and 5 ft, 9.8 sones @ 0.750 in SP and 5 ft
Spark Resistant Construction TypeA
UPC190735229460
Voltage - Roof Ventilators115V AC/208V AC/230V AC
Wheel Dia., Wheel Diameter11 in
Wheel MaterialAluminum
Wheel TypeBackward Inclined Centrifugal
