Description:

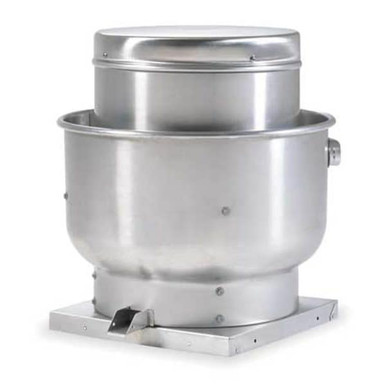

Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, Wheel Diameter 14 3/4 in, Base Diameter Not Applicable, Base Length 26 in, Base Width 26 in, Base Shape Square, Maximum Static Pressure 2 3/4 in wc, Maximum Airflow 1,592 cfm, Minimum Airflow 642 cfm, Maximum Motor Horsepower 3/4 hp, Minimum Motor Horsepower 1/4 hp, Maximum Motor Speed 2,110 RPM, Minimum Motor Speed 1,465 RPM, Assembly Unassembled
Weight:
3.625
Weight:
3.625 LB
Preferred Price:
2255.44
Price:
2255.44
Min Simple Price:
1274.99
Absolute Min Price:
1809.21
Min Price:
1809.21
Dimensions:
[34.0, 33.0, 33.0]
qty:
21
simpleSku:
MTI3MQ:::2RB66
sku:
MTI3MQ::S8:2RB66@y0
condition:
11
seller:
Zoro
amzMan:
dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV83 |
| Adj. 6 3/8"H Roof Curb Stock No. | 3C437 |
| Adj. UL 762 Kitchen Roof Curb Stock No. | 4HX62 |
| Application | Industrial and Commercial Buildings, Restaurants, Schools |
| Assembly | Unassembled |
| Base Diameter | Not Applicable |
| Base Dimension | 28 in Square |
| Base Height | 1 3/4 in |
| Base Length, Base Width | 26" |
| Base Shape | Square |
| Base Size - Roof Ventilators | 26 in x 26 in |
| Bearing Type | Sealed Pillow Block |
| Brake Horsepower | 13/50 hp, 17/50 hp, 13/25 hp, 39/50 hp |
| Brand | Dayton |
| CFM Range | 1016 to 1592 @ 0.5 in SP |
| Color | Silver |
| Compatible Curb Manufacturer Part Number | 24Y860, 2RB75-2RB77, 2RB79-2RB82, 2ZV82-2ZV85 |
| Current Stock | 3 |
| Cutout Length | 21.5 in |
| Cutout Size | 21.5 in L x 21.5 in W |
| Damper Size | 19 x 19 in |
| Dimension A | 26 in |
| Dimension B, Overall Dia., Overall Diameter, Overall Width | 28 7/8 in |
| Dimension C, Overall Height | 26 3/8 in |
| Dimension D | 19 3/8 in |
| Drive Package With Motor Included, Includes Drive Package, Includes Motor, International Shipping | No |
| Drive Type | Belt |
| Drive Type - Roof Ventilators | Belt Drive |
| Duty Rating - Roof Ventilators | Standard |
| Electrical Connection | Power Cord |
| Features | Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, NEMA 1 Junction Box Located in Motor Enclosure, Nonoverloading Centrifugal Wheel Design |
| Fixed UL 762 Kitchen Roof Curb Stock No. | 4HX56 |
| For Air Type | Kitchen Air |
| For Airflow (Dependent on Motor) | 642 cfm to 1,592 cfm |
| For High-Static Pressure Applications | Yes |
| Grease Capacity | Standard Grease |
| Housing Length, Housing Width | 28.9 in |
| Housing Material | Spun Aluminum |
| Housing Material Fabrication | Spun |
| Includes | NEMA 1 Junction Box |
| Item | Centrifugal Upblast Roof Exhaust Fan |
| Item - Roof Ventilators | Upblast Ventilator |
| Lead Time | Expected to ship in 1-2 business days |
| Max. Inlet Temp. | 300 Degrees |
| Maximum Airflow | 1,592 cfm |
| Maximum Ambient Temperature, Maximum Inlet Air Temperature | 300 Degrees F |
| Maximum Fan Speed, Maximum Motor Speed | 2,110 RPM |
| Maximum Motor Horsepower | 3/4 hp |
| Maximum Static Pressure | 2 3/4 in wc |
| Minimum Airflow | 642 cfm |
| Minimum Motor Horsepower | 1/4 hp |
| Minimum Motor Speed | 1,465 RPM |
| Motor HP Range | 1/4 to 3/4 |
| Motor Location | Out of Airstream |
| Mount Type | Roof Curb |
| Mounting Location, Mounting Location - Roof Ventilators | Roof |
| Mpn, Stock No. | 2RB66 |
| Number of Speeds | 1 |
| Overall Depth | 28 1/8 in |
| Propeller Shaft Diameter, Shaft Dia. Sheave End, Shaft Dia. Wheel End | 3/4 in |
| Recommended 12 In. Fixed Curb Item No. | 2RB77 |
| Recommended 8 In. Fixed Curb Item No. | 4HX40 |
| Recommended Damper Size (In.) | 19 x 19 |
| Recommended Damper Stock No. | 4HX66 |
| Resistance Properties | Spark Resistant |
| RPM Range | 1465 to 2110 |
| SKU | ZO-G2236455 |
| Sound Level | Fan RPM 1465: 14.2 sones @ 0.500 in SP and 5 ft, 13.7 sones @ 0.625 in SP and 5 ft, 13.5 sones @ 0.750 in SP and 5 ft, 13.4 sones @ 0.875 in SP and 5 ft, 13.2 sones @ 1.000 in SP and 5 ft, 15.5 sones @ 1.250 in SP and 5 ft, Fan RPM 1605: 15.2 sones @ 0.500 in SP and 5 ft, 14.7 sones @ 0.625 in SP and 5 ft, 14.4 sones @ 0.750 in SP and 5 ft, 14.3 sones @ 0.875 in SP and 5 ft, 14.2 sones @ 1.000 in SP and 5 ft, 14.0 sones @ 1.250 in SP and 5 ft, 15.2 sones @ 1.500 in SP and 5 ft, Fan RPM 1845: 17.0 sones @ 0.500 in SP and 5 ft, 16.8 sones @ 0.625 in SP and 5 ft, 16.6 sones @ 0.750 in SP and 5 ft, 16.4 sones @ 0.875 in SP and 5 ft, 16.2 sones @ 1.000 in SP and 5 ft, 16.0 sones @ 1.250 in SP and 5 ft, 15.9 sones @ 1.500 in SP and 5 ft, 15.6 sones @ 1.750 in SP and 5 ft, 16.1 sones @ 2.000 in SP and 5 ft, Fan RPM 2110: 19.8 sones @ 0.500 in SP and 5 ft, 19.6 sones @ 0.625 in SP and 5 ft, 19.3 sones @ 0.750 in SP and 5 ft, 19.2 sones @ 0.875 in SP and 5 ft, 19.1 sones @ 1.000 in SP and 5 ft, 19.0 sones @ 1.250 in SP and 5 ft, 18.9 sones @ 1.500 in SP and 5 ft, 18.8 sones @ 1.750 in SP and 5 ft, 18.6 sones @ 2.000 in SP and 5 ft, 18.5 sones @ 2.250 in SP and 5 ft, 18.3 sones @ 2.500 in SP and 5 ft, 20.0 sones @ 2.750 in SP |
| Spark Resistant Construction Type | A |
| Standards | UL/cUL 762, AMCA Sound & Air |
| UPC | 190735229538 |
| Wheel & Housing Material | Aluminum / Aluminum |
| Wheel Dia., Wheel Diameter | 14 3/4 in |
| Wheel Material | Aluminum |
| Wheel Type | Backward Inclined Centrifugal |
