Description:

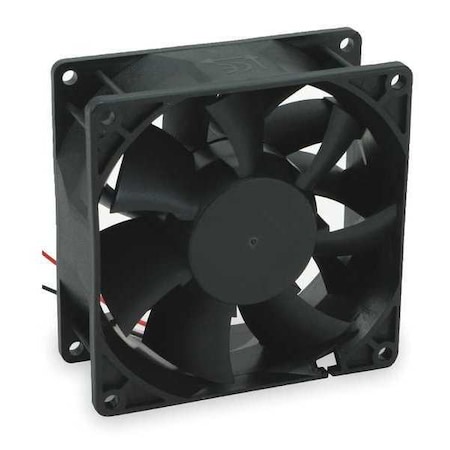

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Depth 1 1/2 in, Width 3 1/8 in, CFM @ 0.000-In. SP 84, Watts 9.1, Voltage 48V DC, - Hz, 0.19 Amps, Electrical Connection - Fans Lead Wires, Sound Level 55.2, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 5700 RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
Attributes
| Key ^ | Value |
|---|---|
| Amps | 0.19 |
| Bearings | Ball |
| Blade Material | Polybutylene |
| CFM @ 0.000-In. SP | 84.1 |
| Depth | 1 1/2 in |
| Fan Width, Fan Height, Fan Width | 3-1/8" |
| Fan dBA | 55.2 |
| Fan Depth | 1-1/2" |
| Fan RPM | 5700 |
| Fan Shape, Shape | Square |
| Fan Voltage | 48VDC |
| Height, Width | 3 1/8 in |
| Housing Finish | Black Painted |
| Housing Material | PBT Plastic |
| Max. Ambient Temp. | 158 Degrees F |
| Mounting Eye O.C. | 2 13/16 in |
| Standards | CE Certified and RoHS Compliant, UL Component Recognized for US and Canada |
| Thermal Protection | Impedance |
| Voltage | 48V DC |
| Watts | 9.1 |
