| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV83 |
| Agency Compliance | ETL |
| Base Length (In.) | 29 |
| Base Width (In.) | 29 |
| Blower RPM | 1295 |
| BtuH Input | 200,000 |
| BtuH Output | 184,000 |
| Burner Control Circuit | 24 Volt |
| Burner Material | Cast Aluminum |
| CFM @ 0.250-In. SP | 2198 |
| CFM @ 0.375-In. SP | 1995 |
| CFM @ 0.500-In. SP | 1740 |
| CFM @ 0.625-In. SP | 1365 |
| CFM @ 0.750-In. SP | - |
| CFM @ 0.875-In. SP | - |
| CFM @ 1.000-In. SP | - |
| Country of Origin (subject to change) | United States |
| Discharge Length (In.) | 12-1/4 |
| Discharge Width (In.) | 10-3/4 |
| Full Load Amps | 12.8/6.4-6.4 |
| Gas Inlet (In.) | 3/4 |
| Gas Type | Natural Gas |
| Housing Height (In.) | 29-3/4 |
| Housing Length (In.) | 107-1/8 |
| Housing Material | Galvanized Steel |
| Housing Width (In.) | 31-1/2 |
| Hz | 60 |
| Ignition System | Direct Spark |
| Includes | Lifting Lugs, Outdoor Air Temperature Sensor, Motorized Intake Damper, Disconnect Switch, Washable Air Filters and Control Panel with 24V Transformer |

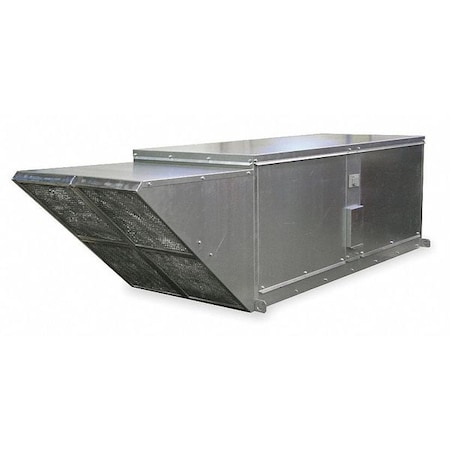

| Item | Make-Up Air Heater |
| Max. BHP | 1.08 |
| Max. Inlet Pressure (PSI) | 1/2 |
| Motor HP | 1 |
| Phase | 1 |
| Recommended 12 In. Fixed Curb Item No. | 2RB78 |
| Requires | Roof Curb for New Installation |
| Sones @ 0.250-In. SP @ 5 Ft. | 16.5 |
| Thermal Efficiency (%) | 92 |
| Turn Down Ratio | 25:1 With Electronic Modulating |
| Type | Direct Fired |
| Voltage | 115/208-230 |
| Wheel Dia. (In.) | 9 |
