| CC Number | CC060A |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Duty | Continuous |
| Footnotes | 5,10,15 |
| Frame | 324T |
| Frame Material, Motor Frame Material | Cast Iron |
| Full Load Amps | 69.3-62.6/31.3 |
| HP | 25 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |

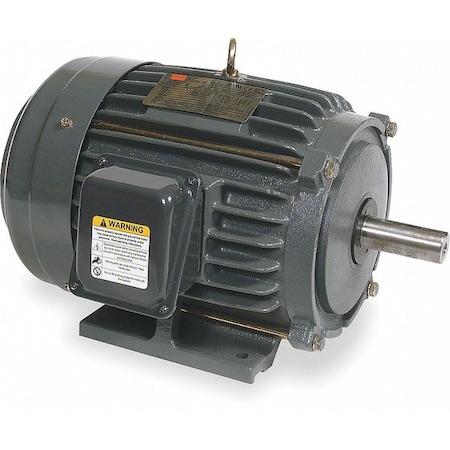

| Item | General Purpose Motor |
| Manufacturers Warranty Length | 3 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1175 |
| No. of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Overall Length | 29-3/4" |
| Phase | 3 |
| RPM Group, RPM Range | 1101-1200 |
| Shaft Dia. | 2-1/8" |
| Shaft Length | 5-1/4" |
| Voltage | 208-230/460 |
| Voltage Compatibility | 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 |
