Description:

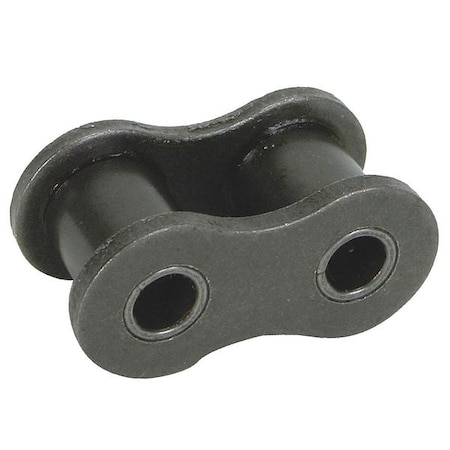

Roller Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 9/32 in, Chain Number 35, Roller Diameter 3/16 in, Pitch 3/8 in, Link Type Adding, Number of Strands 1, Heavy Series No, Inside Width 3/16 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Contruction Riveted Pin, Pin Hole Diameter 9/64 in, Pin Outside Diameter 9/64 in, Plate Height 23/64 in, Plate Thickness 3/64 in, Tensile Strength 1,760 lbf, Package Quantity 5
Attributes
| Key ^ | Value |
|---|---|
| ANSI Chain Size, Chain Number, Chain Size - Sprockets, For Chain Number, Industry Chain Size | 35 |
| Breaking Strength (Lb.), Tensile Strength (Lb.) | 2100 |
| Breaking Strength, Tensile Strength | 1,760 lb |
| Bushing Dia. (In.), Roller Dia. (In.) | 0.200 |
| Bushing Dia., Chain Roller Dia. | 0.2 in |
| Chain Construction, Pin Contruction | Riveted Pin |
| Chain Link Material | Carbon Steel |
| Chain Link Overall Width, Connecting End to Center Line | 0.284 in |
| Chain Overall Width | 9/32 in |
| Connecting End to Center Line (In.) | 0.284 |
| For Chain Style | Standard Roller Chains |
| For Chain Style (combined) | 35 Steel Regular |
| Heavy Series | No |
| Heavy Series (from Heavy) | Regular |
| Hole Dia. | 0.143 in |
| Hole Dia. (In.) | 0.140 |
| Industrial Chain Pitch | 3/8" |
| Industry Chain Pitch | 3/8 in |
| Inside Pin Dia., Outside Pin Dia. | 0.141 in |
| Inside Width, Roller Diameter | 3/16 in |
| Item, Link Style, Link Type, Roller Chain Link Item, Type | Roller Link |
| Material | Mid Carbon |
| Max. Allowable Load (Lb.) | 480 |
| Max. Allowable Load, Working Load Limit | 480 lb |
| Maximum Operating Temperature | 150 Degrees F |
| Minimum Operating Temperature | 10 Degrees F |
| Number of Strands | Single |
| Outside Pin Dia. (In.) | 0.141 |
| Overall Width (In.), Pin Length (In.) | 0.514 |
| Pin Hole Diameter, Pin Outside Diameter | 9/64 in |
| Pin Length | 0.64 in |
| Pin Link Plate Thickness | 0.05 in |
| Pin Link Plate Thickness (In.) | 0.050 |
| Pitch | 0.375" |
| Plate Height | 23/64 in |
| Plate Thickness | 3/64 in |
| Rivet End to Center Line | 0.23 in |
| Rivet End to Center Line (In.) | 0.230 |
| Roller Chain Link Type | Standard Riveted |
| Roller Link Plate Height | 0.356 in |
| Roller Link Plate Height (In.) | 0.340 |
| Temp. Range | 10 Degrees to 150 Degrees F |
| Width Between Roller Link Plates | 0.188 in |
| Width Between Roller Link Plates (In.) | 0.188 |
