Description:

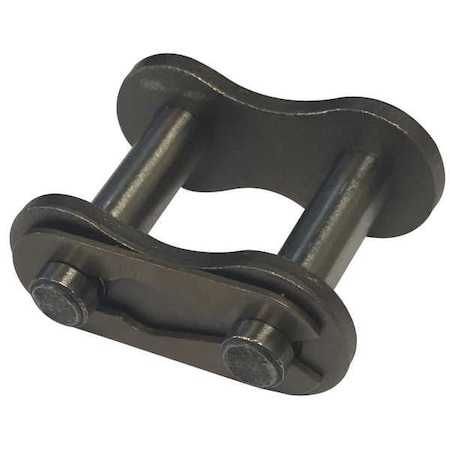

Connecting Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 1/64 in, Chain Number 50, Roller Diameter 25/64 in, Pitch 5/8 in, Link Type Connecting, Number of Strands 1, Heavy Series No, Inside Width 3/8 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Contruction Riveted Pin, Pin Hole Diameter 13/64 in, Pin Outside Diameter 13/64 in, Plate Height 19/32 in, Plate Thickness 5/64 in, Tensile Strength 4,880 lbf
Attributes
| Key ^ | Value |
|---|---|
| ANSI Chain Size, Chain Number, Chain Size - Sprockets, For Chain Number, Industry Chain Size | 50 |
| Breaking Strength (Lb.), Tensile Strength (Lb.) | 6100 |
| Breaking Strength, Tensile Strength | 4,880 lb |
| Bushing Dia. | 0.28 in |
| Bushing Dia. (In.) | 0.280 |
| Chain Construction, Pin Contruction | Riveted Pin |
| Chain Link Material | Carbon Steel |
| Chain Link Overall Width, Pin Length | 1.01 in |
| Chain Overall Width | 1 1/64 in |
| Chain Roller Dia. | 0.4 in |
| Connecting End to Center Line | 0.45 in |
| Connecting End to Center Line (In.) | 0.450 |
| For Chain Style | Standard Roller Chains |
| Heavy Series | No |
| Heavy Series (from Heavy) | Regular |
| Hole Dia. | 0.202 in |
| Hole Dia. (In.) | 0.199 |
| Industrial Chain Pitch | 5/8" |
| Industry Chain Pitch | 5/8 in |
| Inside Pin Dia., Outside Pin Dia. | 0.2 in |
| Inside Width | 3/8 in |
| Item, Link Style, Link Type, Roller Chain Link Item, Type | Connecting Link |
| Material | Mid Carbon |
| Max. Allowable Load (Lb.) | 1430 |
| Max. Allowable Load, Working Load Limit | 1,430 lb |
| Maximum Operating Temperature | 150 Degrees F |
| Minimum Operating Temperature | 10 Degrees F |
| Number of Strands | Single |
| Outside Pin Dia. (In.) | 0.200 |
| Overall Width (In.), Pin Length (In.) | 0.851 |
| Pin Hole Diameter, Pin Outside Diameter | 13/64 in |
| Pin Link Plate Thickness | 0.08 in |
| Pin Link Plate Thickness (In.) | 0.080 |
| Pitch | 0.625" |
| Plate Height | 19/32 in |
| Plate Thickness | 5/64 in |
| Rivet End to Center Line | 0.401 in |
| Rivet End to Center Line (In.) | 0.401 |
| Roller Chain Link Type | Standard Riveted |
| Roller Dia. (In.) | 0.400 |
| Roller Diameter | 25/64 in |
| Roller Link Plate Height | 0.594 in |
| Roller Link Plate Height (In.) | 0.579 |
| Temp. Range | 10 Degrees to 150 Degrees F |
| Width Between Roller Link Plates | 0.375 in |
| Width Between Roller Link Plates (In.) | 0.375 |
