Description:

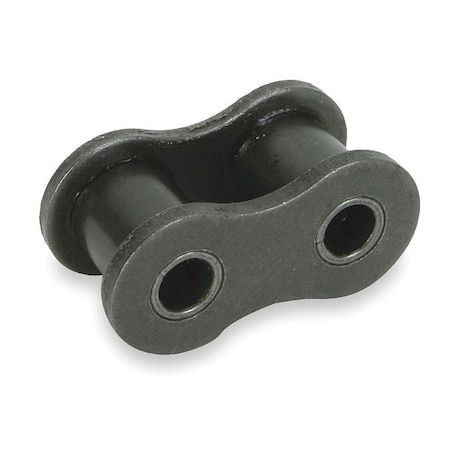

Roller Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 7/8 in, Chain Number 80, Roller Diameter 5/8 in, Pitch 1 in, Link Type Adding, Number of Strands 1, Heavy Series No, Inside Width 5/8 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Contruction Riveted Pin, Pin Hole Diameter 5/16 in, Pin Outside Diameter 5/16 in, Plate Height 61/64 in, Plate Thickness 0.125 in, Tensile Strength 12,500 lbf
Attributes
| Key ^ | Value |
|---|---|
| ANSI Chain Size, Chain Number, Chain Size - Sprockets, For Chain Number, Industry Chain Size | 80 |
| Breaking Strength (Lb.), Tensile Strength (Lb.) | 14,500 |
| Breaking Strength, Tensile Strength | 12,500 lb |
| Bushing Dia. | 0.44 in |
| Bushing Dia. (In.) | 0.440 |
| Chain Construction, Pin Contruction | Riveted Pin |
| Chain Link Material | Carbon Steel |
| Chain Link Overall Width | 0.87 in |
| Chain Overall Width | 7/8 in |
| Chain Roller Dia., Width Between Roller Link Plates | 0.625 in |
| Connecting End to Center Line | 0.75 in |
| Connecting End to Center Line (In.) | 0.750 |
| For Chain Style | Standard Roller Chains |
| For Chain Style (combined) | 80 Steel Regular |
| Heavy Series | No |
| Heavy Series (from Heavy) | Regular |
| Hole Dia. | 0.314 in |
| Hole Dia. (In.) | 0.311 |
| Industrial Chain Pitch, Pitch | 1" |
| Industry Chain Pitch | 1 in |
| Inside Pin Dia., Outside Pin Dia. | 0.312 in |
| Inside Width, Roller Diameter | 5/8 in |
| Item, Link Style, Link Type, Roller Chain Link Item | Roller Link |
| Material | Mid Carbon |
| Max. Allowable Load (Lb.) | 3300 |
| Max. Allowable Load, Working Load Limit | 3,300 lb |
| Maximum Operating Temperature | 150 Degrees F |
| Minimum Operating Temperature | 10 Degrees F |
| Number of Strands, Number of Strands (broad rename) | Single |
| Outside Pin Dia. (In.) | 0.312 |
| Overall Width (In.), Pin Length (In.) | 1.386 |
| Pin Hole Diameter, Pin Outside Diameter | 5/16 in |
| Pin Length | 1.54 in |
| Pin Link Plate Thickness (In.) | 0.125 |
| Pin Link Plate Thickness, Plate Thickness | 0.125 in |
| Plate Height | 61/64 in |
| Rivet End to Center Line | 0.636 in |
| Rivet End to Center Line (In.) | 0.636 |
| Roller Chain Link Type | Standard Riveted |
| Roller Dia. (In.), Width Between Roller Link Plates (In.) | 0.625 |
| Roller Link Plate Height | 0.95 in |
| Roller Link Plate Height (In.) | 0.935 |
| Temp. Range | 10 Degrees to 150 Degrees F |
| Type | Single Strand Roller |
