Description:

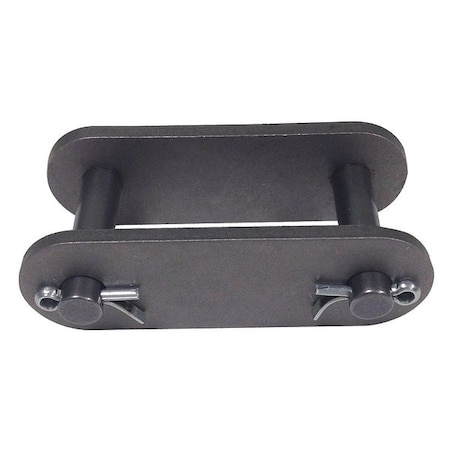

Connecting Link, Material Steel, Chain Overall Width 53/64 in, Chain Number C2040, Roller Diameter 19/64 in, Pitch 1 in, Link Type Connecting, Number of Strands 1, Heavy Series No, Inside Width 5/16 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Hole Diameter 5/32 in, Pin Outside Diameter 5/32 in, Plate Height 15/32 in, Plate Thickness 1/16 in, Tensile Strength 3,125 lbf
Attributes
| Key ^ | Value |
|---|---|
| ANSI Chain Size, Chain Number, Chain Size - Sprockets, For Chain Number, Industry Chain Size | C2040 |
| Breaking Strength (Lb.), Tensile Strength (Lb.) | 3960 |
| Breaking Strength, Tensile Strength | 3,125 lb |
| Bushing Dia. | 0.22 in |
| Bushing Dia. (In.) | 0.220 |
| Chain Link Material | Carbon Steel |
| Chain Link Overall Width, Pin Length | 0.83 in |
| Chain Overall Width | 53/64 in |
| Chain Roller Dia., Width Between Roller Link Plates | 0.312 in |
| Connecting End to Center Line | 0.377 in |
| Connecting End to Center Line (In.) | 0.377 |
| For Chain Style | Standard Conveyor Chains |
| For Chain Style (combined) | Steel No |
| Heavy Series | No |
| Hole Dia. | 0.158 in |
| Hole Dia. (In.) | 0.155 |
| Industrial Chain Pitch, Pitch | 1" |
| Industry Chain Pitch | 1 in |
| Inside Pin Dia., Outside Pin Dia. | 0.155 in |
| Inside Width | 5/16 in |
| Item, Link Style, Link Type, Roller Chain Link Item | Connecting Link |
| Material | Mid Carbon |
| Max. Allowable Load (Lb.) | 590 |
| Max. Allowable Load, Working Load Limit | 534 lb |
| Maximum Operating Temperature | 150 Degrees F |
| Minimum Operating Temperature | 10 Degrees F |
| Number of Strands | Single |
| Outside Pin Dia. (In.) | 0.156 |
| Overall Width (In.), Pin Length (In.) | 0.697 |
| Pin Hole Diameter, Pin Outside Diameter | 5/32 in |
| Pin Link Plate Thickness | 0.06 in |
| Pin Link Plate Thickness (In.) | 0.060 |
| Plate Height | 15/32 in |
| Plate Thickness | 1/16 in |
| Rivet End to Center Line | 0.32 in |
| Rivet End to Center Line (In.) | 0.320 |
| Roller Chain Link Type | Conveyor |
| Roller Dia. (In.), Width Between Roller Link Plates (In.) | 0.312 |
| Roller Diameter | 19/64 in |
| Roller Link Plate Height | 0.463 in |
| Roller Link Plate Height (In.) | 0.463 |
| Temp. Range | 10 Degrees to 150 Degrees F |
| Type | Conveyor Connecting |
